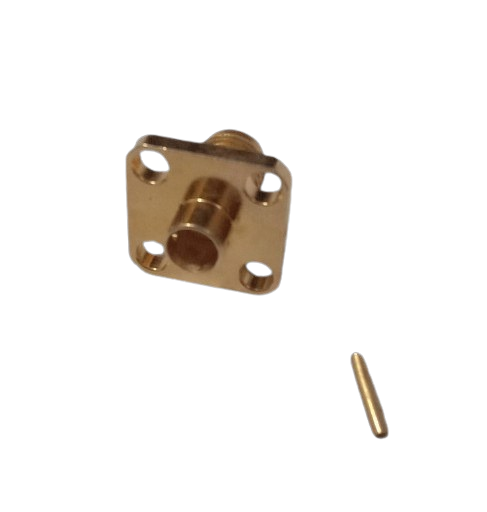

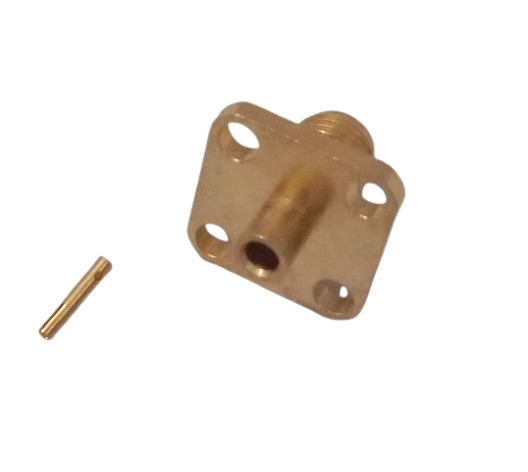

SMA F 4 HOLE RG 141 SOLDER

• Preparation:
  – Inspect the PCB: Ensure that the PCB is prepared with the correct footprint, including four mounting holes or pads for the SMA female connector.
  – Prepare the Connector: Check the SMA female connector to ensure it is clean and free of defects.
• Prepare the Cable:
  – Strip the Cable: Prepare the RG-141 coaxial cable by stripping it to expose the central conductor and shield:
  – Remove the Outer Jacket: Strip away the outer jacket to reveal the braided shield and dielectric insulation.
  – Expose the Shield: Remove or fold back the braided shield carefully.
  – Strip the Dielectric: Strip the dielectric insulation to expose the central conductor, following the manufacturer’s specifications for strip lengths.
• Assemble the Connector:
  – Insert the Central Conductor: Insert the stripped end of the central conductor into the central pin of the SMA female connector.
  – Crimp or Solder: Depending on the connector design, crimp or solder the central conductor to the pin. Crimping involves using a crimping tool, while soldering involves heating the pin and applying solder.
•  Position and Mount the Connector:
  – Align the Connector: Position the SMA female connector over the mounting holes on the PCB. Ensure that the four mounting pins are aligned with the corresponding PCB pads.
  – Secure the Connector: Hold the connector in place, either manually or using a fixture.
• Soldering Steps:
  – Solder the Pins:
  – Heat each pin of the connector with a soldering iron.
  – Apply solder to each pin and its corresponding PCB pad, ensuring that the solder flows around the pin and pad for a solid connection.
  – Avoid excessive solder to prevent solder bridges and ensure neat, controlled joints.
• Final Steps:
  – Inspect the Solder Joints: Check each solder joint to ensure it is properly bonded. Look for clean, shiny solder joints without cold solder or bridges.
  – Clean the Area: Use isopropyl alcohol or another suitable cleaning agent to clean the soldered area and remove any flux residue.
  – Test the Connection: If possible, use RF testing equipment to verify that the SMA connector performs correctly and meets the
• Applications:

– PCB Mounting: The SMA female connector with four holes is designed for mounting directly onto a PCB, providing a secure and stable connection for RF applications.
– High-Frequency Connections: Suitable for use in RF and microwave systems where reliable and high-frequency signal transmission is required.
– Durability: The four-hole design offers enhanced mechanical stability, making it ideal for applications where the connector will experience physical stress or movement.

• Advantages:

– Enhanced Stability: The four-hole design ensures a strong mechanical connection to the PCB, which helps maintain signal integrity and durability.
– High-Frequency Performance: The SMA connector provides reliable performance for high-frequency applications, ensuring effective signal transmission.
