SMA F 4 HOLE SOLDER
SMA F 4 HOLE SOLDER

SMA F 4 HOLE SOLDER

₹99

  • Preparation:
    – Inspect the PCB: Ensure that the PCB is clean and that the four mounting holes or pads for the SMA female connector are properly prepared. The holes or pads should be free of contaminants and correctly aligned with the connector’s pins.
    – Prepare the Connector: Verify that the SMA female connector is clean and ready for assembly. Ensure that the four pins are straight and undamaged.
  • Position the Connector:
    – Insert the Connector: Place the SMA female connector so that its four pins are aligned with the corresponding holes or pads on the PCB. Ensure the connector is properly seated and aligned with the PCB surface.
  • Soldering Steps:
    – Secure the Connector: Use a fixture or tool to hold the connector in place if needed. This will prevent the connector from shifting during the soldering process.
    – Solder the Pins:
    – Heat each pin with a soldering iron.
    – Apply solder to each pin and its corresponding PCB pad or hole. Ensure the solder flows around the pin and pad to form a solid connection.
    – Be careful to apply a controlled amount of solder to avoid solder bridges or excess solder.
    – Check Alignment: Continuously check that the connector remains properly aligned with the PCB during soldering to avoid misalignment.
  • Final Steps:
    – Inspect the Solder Joints: After soldering, examine each solder joint to ensure it is properly bonded. Look for clean, shiny solder joints without cold solder or solder bridges.
    – Clean the Area: Clean the soldered area with isopropyl alcohol or another suitable cleaning agent to remove any flux residue.
    – Test the Connection: Use RF testing equipment if available to confirm that the soldered SMA connector performs correctly and meets the required specifications for signal integrity and performance.
  • Applications:

– SMA Female 4-Hole Connectors with Soldering are commonly used in RF and microwave applications where a secure and stable connection to a PCB is required. The four-hole design provides a robust mounting solution, ensuring the connector is firmly attached to the PCB.
– Soldering ensures a permanent connection that is suitable for both automated assembly and manual installations.

Categories: , , Tag:

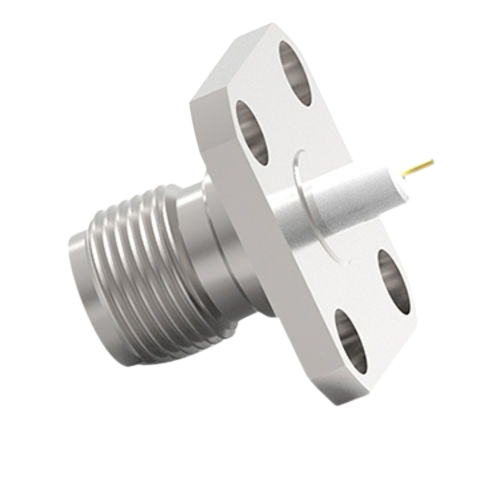

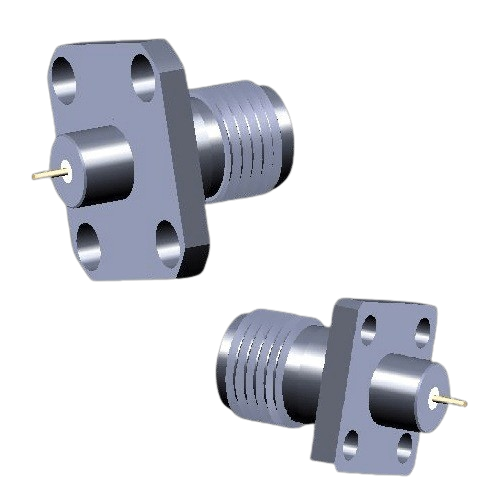

This SMA female connector with a four-hole mounting configuration is suitable for soldering applications. It provides a stable and secure connection for high-frequency signals, ensuring minimal signal loss. Ideal for use in RF systems requiring a durable and reliable attachment to a mounting surface.The term ”SMA F 4 HOLE SOLDER” refers to a specific type of SMA female connector designed to be mounted on a printed circuit board (PCB) using soldering. Here’s a detailed breakdown of each component and the mounting process:

1. SMA Connector (Female):
– SMA (SubMiniature version A): A coaxial RF connector known for its compact size and high-frequency performance, typically up to 18 GHz. SMA connectors are widely used for RF signal applications.
– Female (F): The female SMA connector has a receptacle designed to accept the central pin of a male SMA connector. It usually features a threaded coupling mechanism to ensure a secure connection.

2. 4 Hole Solder:
– 4 Hole: This indicates that the SMA female connector has four mounting holes or pins that are used for securing the connector to a PCB. The four holes are typically used to provide a robust and stable mounting solution.
– Solder: This means the SMA female connector is designed to be soldered onto the PCB. The four holes or pins are inserted into the PCB’s corresponding pads or holes and then soldered to create a solid electrical and mechanical connection.

These connectors are used in various electronic devices, including telecommunications equipment, RF systems, and other applications where reliable and high-frequency connections are necessary. The SMA female connector with four holes for soldering offers a stable and dependable solution for such demanding applications

Weight 0.1 kg
