- 1/2″ Flexible Coaxial Cable:
1/2″ Flexible Cable: This is a type of coaxial cable with a 1/2″ diameter, which is flexible and often used in RF applications where flexibility and robustness are needed. The cable includes a central conductor, dielectric insulation, a braided shield, and an outer jacket.
Flexible: This type of cable is designed to be easily bent and routed in different directions, making it suitable for dynamic or tight-space applications.
Clamp:
- Clamp: A mechanical device used to secure the connector to the cable. In this context, the clamp is used to hold the SMA connector in place on the 1/2″ flexible coaxial cable. The clamp typically compresses around the cable and connector to create a secure connection.

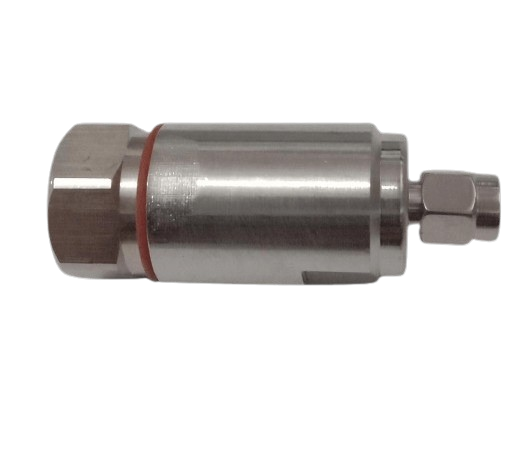

Clamping Process for SMA Male Connector and 1/2″ Flexible Coaxial Cable:
Preparation:
Strip the Cable: Prepare the 1/2″ flexible coaxial cable by stripping it to expose the central conductor and the shield. Follow these steps:
Remove the Outer Jacket: Strip away the outer jacket of the cable to expose the braided shield and dielectric insulation.
Expose the Shield: Remove the braided shield (or foil) while being careful not to damage it.
Strip the Dielectric: Strip the dielectric insulation to expose the central conductor. Follow the manufacturer’s specifications for strip lengths to ensure a proper fit.
Prepare the Connector: Ensure the SMA male connector is clean and ready. It will typically include a central pin and a clamping mechanism or flange designed to secure the cable.
