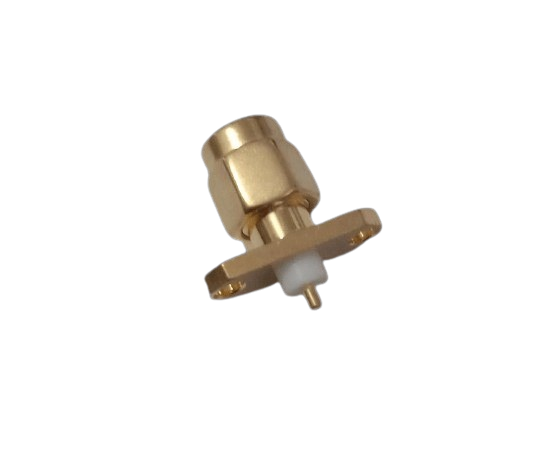

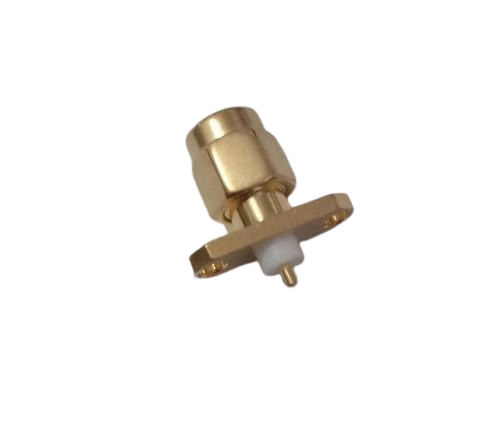

SMA M 2 HOLE SOLDER

• Preparation:
  – Inspect the PCB: Ensure the PCB is clean and the solder pads or holes for the SMA connector are properly prepared and aligned. The pads should be free of contaminants and correctly positioned for the connector.
  – Prepare the Connector: Make sure the SMA male connector is clean and in good condition. It will have two pins or leads that align with the PCB’s holes or pads.
• Insert the Connector:
  – Position the Connector: Insert the SMA male connector into the designated holes or pads on the PCB. The two pins or leads of the connector should fit through the PCB holes or align with the pads.
• Soldering Steps:
  – Secure the Connector: If necessary, use a fixture or tape to hold the connector in place while soldering. Ensure the connector is properly aligned and does not shift.
  – Solder the Pins:
  – Heat each pin of the SMA connector with a soldering iron.
  – Apply solder to each pin and its corresponding PCB pad or hole. Ensure that the solder flows around the pin and pad, creating a strong and reliable connection.
  – Avoid applying excessive solder, which can cause solder bridges or other issues. Aim for a clean, controlled application.
  – Check Alignment: Continuously check that the connector remains properly aligned with the PCB during the soldering process to avoid any misalignment.
• Final Steps:
  – Inspect the Solder Joints: After soldering, examine each solder joint to ensure proper bonding. Look for clean, shiny solder joints without cold solder or solder bridges. Confirm that each pin is securely attached to its pad.
  – Clean the Area: If needed, clean the soldered area with isopropyl alcohol or another suitable cleaning agent to remove any flux residue.
  – Test the Connection: If possible, use RF testing equipment to verify that the soldered SMA connector performs correctly and meets the required specifications for signal integrity and performance.

Applications:

– SMA Male Connectors with 2-Hole Mounting are commonly used in RF and microwave applications where a stable and reliable connection is crucial. The additional mounting hole provides increased mechanical stability compared to connectors with fewer mounting points.
– Soldering is preferred for its permanence and reliability, providing a solid mechanical and electrical connection suitable for fixed installations on PCBs.
