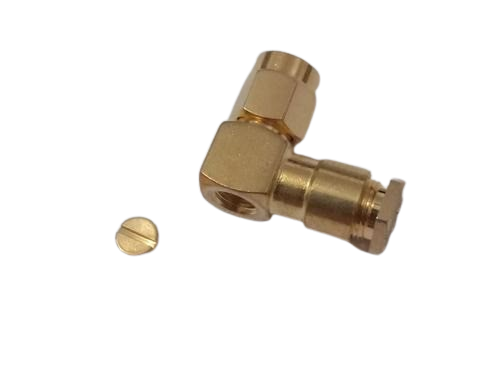

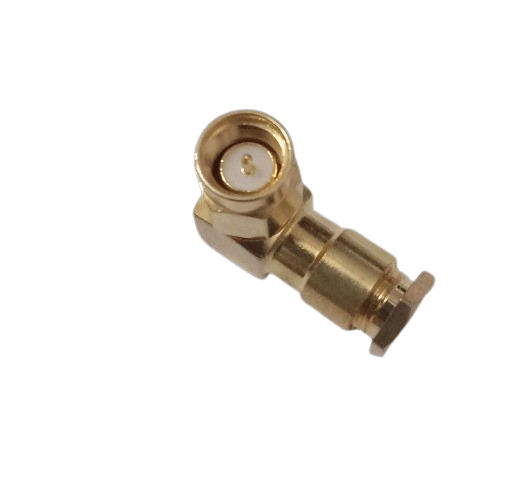

SMA M RA LMR 100 CLAMP

• Preparation:
  – Strip the Cable: Carefully strip the LMR-100 cable to expose the central conductor and the shield. Follow these steps:
  – Remove the Outer Jacket: Strip away the outer jacket of the cable to expose the braided shield and dielectric insulation.
  – Expose the Shield: Remove the braided shield (or foil) while being careful not to damage it.
  – Strip the Dielectric: Strip the dielectric insulation to expose the central conductor. Follow the manufacturer’s specifications for strip lengths to ensure a proper fit.
  – Prepare the Connector: Ensure the SMA right-angle connector is clean and ready. It will include a clamping ring or ferrule that fits around the cable.

 Clamping Steps:
– Insert the Central Conductor:
– Insert the stripped end of the LMR-100 cable’s central conductor into the central pin of the SMA connector. Ensure it is fully inserted and aligned.
– Position the Clamp:
– Place the clamping ring or ferrule over the cable and align it with the connector’s clamping mechanism. The clamping ring will typically be positioned to secure the shield and outer jacket of the cable.
– Secure the Clamp:
– Use a clamping tool or mechanism to compress the clamping ring around the cable. This secures the connector to the cable, ensuring a stable mechanical and electrical connection. The clamp should be tightened evenly to avoid damage to the cable or connector.
– Inspect the Connection:
– Ensure that the clamp is securely fastened and that the connector is properly aligned with the cable. Verify that the shield and central conductor are properly connected.

• Final Steps:
  – Inspect the Connection: Check for any visible damage or misalignment. Ensure that the clamp is securely tightened and that there are no loose parts.
  – Test the Connection: If possible, use RF testing equipment to verify that the connection performs correctly and meets the required performance specifications.

Applications:

– SMA Right-Angle to LMR-100 Clamped Assemblies are used in RF and microwave applications where a robust, reliable connection is needed, and where ease of assembly or disassembly is a factor. The right-angle connector helps with cable routing in tight or specific orientations.
– Clamping is used when a connection needs to be secure but also potentially removable or adjustable. This method can be advantageous in applications where connectors might need to be frequently replaced or adjusted.
