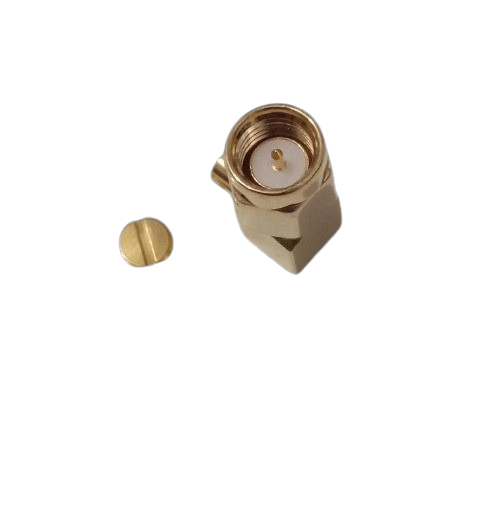

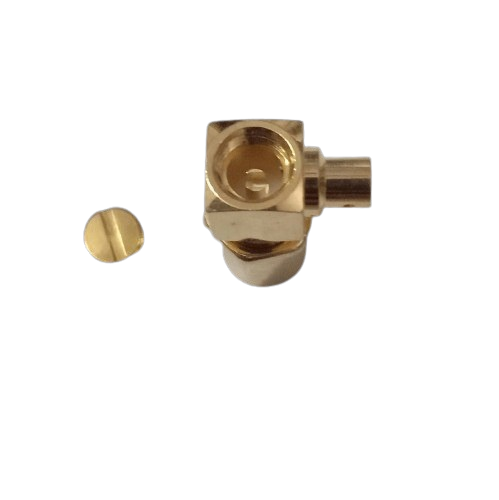

SMA M RA RG .86 SOLDER

SMA M RA RG .86 SOLDER

₹90

Preparation:

Strip the Cable: Carefully strip the RG-86 cable to expose the central conductor and the shield. Ensure that you do not damage the dielectric material or the conductors.
Prepare the Connector: The SMA right-angle connector typically consists of a body with a central pin and a shell that needs to be soldered.
Soldering Steps:

Attach the Central Conductor:
Insert the exposed inner conductor of the RG-86 cable into the central pin of the SMA connector.
Heat the connection point with a soldering iron and apply solder to ensure a solid joint between the conductor and the pin.
Attach the Shield:
Fold back the shield of the RG-86 cable so that it makes contact with the connector’s grounding element or the connector body.
Heat the connection area and apply solder to secure the shield to the connector, ensuring good electrical grounding and shielding.
Final Steps:

Inspect the Connection: Check for any solder bridges or cold joints. Ensure that the solder joints are clean and secure.
Test the Connection: If possible, test the connection with RF equipment to ensure it performs well and maintains signal integrity.
Applications:
SMA Right-Angle to RG-86 Cable assemblies are commonly used in RF and communication systems where space is limited and a high-frequency connection is needed.
Right-angle connectors help in managing cable routing in compact or complex setups, minimizing strain on the cable and connector.

Categories: , , Tag:

This SMA male right-angle connector is designed for soldering to RG .86 cables. It ensures a secure and stable connection for high-frequency signals, suitable for RF applications with space constraints.

SMA Connector (Male, Right-Angle):

SMA (SubMiniature version A): A type of coaxial RF connector used for high-frequency applications. The “male” designation means it has a central pin that connects to the central conductor of a female SMA connector.
Right-Angle (RA): The “RA” indicates that this SMA connector has a right-angle design, meaning the connector body is at a 90-degree angle relative to the cable. This design is useful for making connections in tight spaces or for routing cables in specific directions.
RG-86 Cable:

RG-86: A coaxial cable used for high-frequency applications, characterized by its low attenuation and good performance. It has a characteristic impedance of 50 ohms, making it suitable for RF applications.
Construction: Includes a central conductor, dielectric insulation, a shielding layer (usually braid), and an outer jacket.
Solder:

Soldering: This is the process of using a solder material to join the SMA connector to the RG-86 cable. Soldering is crucial for creating a reliable and low-loss electrical connection.
Soldering Process for SMA Right-Angle Connector and RG-86 Cable:



Weight 0.1 kg
