SMA M RG .86 SOLDER

SMA Connector:
SMA stands for SubMiniature version A, a type of coaxial RF connector designed for high-frequency applications. The “M” typically indicates a male connector, which has a central pin that makes contact with the female connector’s center conductor.
RG .86 Cable:
RG-86 is a type of coaxial cable used in RF applications. This cable is designed for high-frequency performance, often used in communication systems, broadcast, and other applications requiring low attenuation and reliable signal transmission.
Characteristics: RG-86 cables typically have a characteristic impedance of 50 ohms, and their construction is optimized to minimize signal loss and maintain signal integrity at high frequencies.
Solder:
Solder is used to make electrical connections by melting and joining metals together. In the context of SMA connectors and RG-86 cable, soldering is used to connect the cable to the connector.
Combining Them:

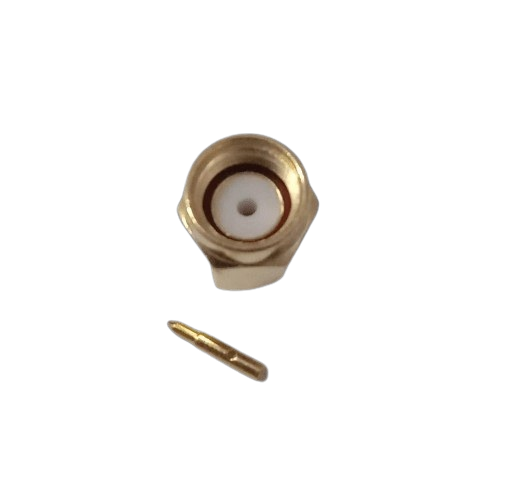

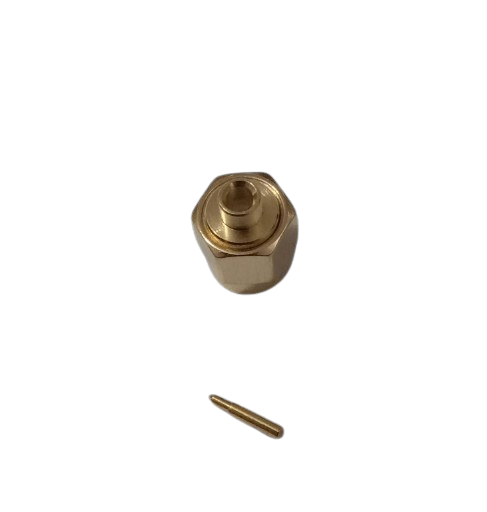

SMA Connector (Male): Used to connect the RG-86 cable to other components or systems. The male SMA connector has a central pin and threads for coupling.
RG-86 Cable: The cable that will be attached to the SMA connector. It is chosen for its performance characteristics in high-frequency applications.
Soldering Process: This involves:
