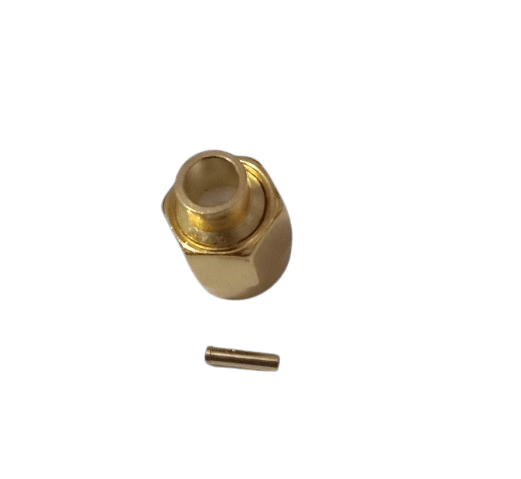

SMA M RP RG 141 SOLDER

This SMA male reverse polarity (RP) connector is designed for soldering to RG 141 cables. It ensures a secure and stable connection for high-frequency signals, suitable for professional RF applications.

SMA Connector:
SMA stands for SubMiniature version A, which is a type of coaxial RF (radio frequency) connector. It’s widely used for high-frequency signals, typically up to 18 GHz.
Usage: SMA connectors are used in a variety of applications, including communication systems, test equipment, and RF devices. They provide a secure and precise connection for coaxial cables.
RG-141 Cable:
RG-141 is a type of coaxial cable. The “RG” stands for “Radio Guide,” and the number is part of a historical designation system for coaxial cables.
Characteristics: RG-141 is known for its relatively low attenuation and high performance, especially useful in high-frequency applications. It has a characteristic impedance of 50 ohms.
Usage: This cable is used in various RF applications where low signal loss and high-frequency performance are crucial, such as in communications, broadcasting, and laboratory experiments.
Solder:
Solder is a fusible metal alloy used to join together metal workpieces. In electronics, it’s used to make connections between electronic components and circuit boards.
Types: There are various types of solder, including lead-based and lead-free, with different melting points and properties. For precision work like SMA connectors, a solder with a fine tip and good flux properties is often used.
Combining Them:
When working with SMA connectors and RG-141 cable, soldering is a crucial step to ensure a reliable electrical connection. The SMA connectors are typically attached to the RG-141 cable through a precise soldering process, which involves:
