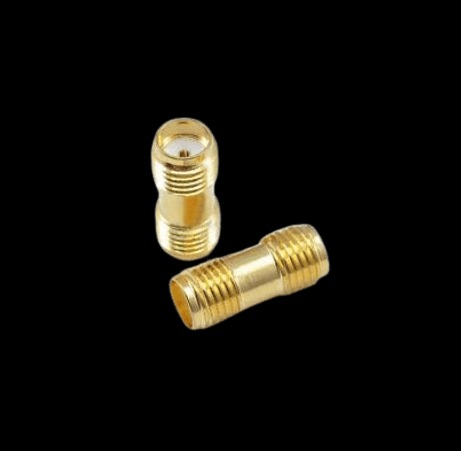

SMA(F) TO SMA(F) ADAPTOR 18GHZ

1. Connector Types:
   • SMA Female:
     • Connector Type: SMA (SubMiniature version A)
     • Gender: Female (with a central socket and threaded shield)
     • Size: A compact, precision RF connector known for its high performance and reliability, especially in high-frequency applications.
2. Frequency Range:
   • Up to 18 GHz: Designed to operate effectively at frequencies up to 18 GHz, making it suitable for advanced RF and communication systems that operate within this frequency range.
3. Impedance:
   • 50 Ohms:
     • SMA Connectors: Typically 50 ohms, which is standard for many RF applications. Proper impedance matching is crucial to avoid signal reflections and ensure efficient signal transfer.
4. Mechanical Construction:
   • Material: Typically constructed from high-quality metals such as brass or stainless steel, often plated with nickel or gold to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a secure and reliable connection between SMA Female connectors, ensuring high performance and durability at high frequencies.
5. Applications:
   • RF Testing: Ideal for connecting or extending RF equipment with SMA connectors in test setups where high-frequency performance up to 18 GHz is required.
   • Communication Systems: Facilitates connections in communication systems that use SMA connectors and require high-frequency capabilities.
   • Microwave Systems: Provides connectivity in microwave systems where SMA connectors are used and high-frequency performance is essential.
   • High-Frequency Systems: Suitable for systems requiring low loss and high precision at frequencies up to 18 GHz.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer, particularly important at high frequencies.
   • Reliable Performance: Capable of operating effectively up to 18 GHz, suitable for advanced RF and communication systems.
   • Durability: Built to withstand frequent connections and disconnections, ensuring long-term reliability.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 18 GHz) meets the requirements of your application. For higher frequency applications, ensure the adapter is rated for those frequencies.
• Ensure Secure Connections: Properly connect the SMA Female connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to maintain optimal performance.

This SMA Female to SMA Female Adapter 18 GHz provides a high-performance solution for connecting RF and communication systems, offering reliable and efficient connectivity with excellent signal integrity and durability at frequencies up to 18 GHz.
