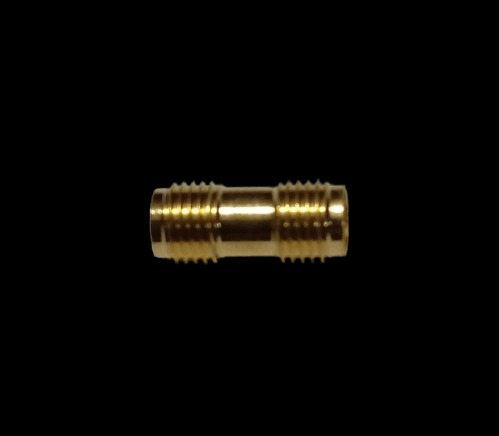

SMA(F) TO SMA(F) ADAPTOR 4GHZ

1. Connector Types:
   • SMA Female:
     • Connector Type: SMA (SubMiniature version A)
     • Gender: Female (with a central socket and threaded shield)
     • Size: A compact and precision RF connector known for its high performance and reliability, particularly in RF and microwave applications.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively at frequencies up to 4 GHz, making it suitable for various RF and communication systems within this frequency range.
3. Impedance:
   • 50 Ohms:
     • SMA Connectors: Typically 50 ohms, which is the standard for many RF applications. Proper impedance matching is important to avoid signal reflections and ensure efficient signal transfer.
4. Mechanical Construction:
   • Material: Usually constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a secure and reliable connection between SMA Female connectors, ensuring good performance within the specified frequency range.
5. Applications:
   • RF Testing: Ideal for connecting or extending RF equipment with SMA connectors in test setups requiring performance up to 4 GHz.
   • Communication Systems: Facilitates connections in communication systems that use SMA connectors and operate up to 4 GHz.
   • Microwave Systems: Provides connectivity in microwave systems where SMA connectors are used, supporting frequencies up to 4 GHz.
   • Antenna Systems: Allows connections between antennas and devices with SMA connectors, suitable for RF applications up to 4 GHz.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer, which is crucial for maintaining signal integrity.
   • Reliable Performance: Capable of operating effectively up to 4 GHz, ensuring suitability for a wide range of RF and communication systems.
   • Durability: Built to withstand frequent connections and disconnections, providing long-term reliability.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For applications requiring higher frequencies, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the SMA Female connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to maintain optimal performance.

This SMA Female to SMA Female Adapter 4 GHz provides a reliable solution for connecting RF and communication systems, offering good performance and signal integrity up to 4 GHz.
