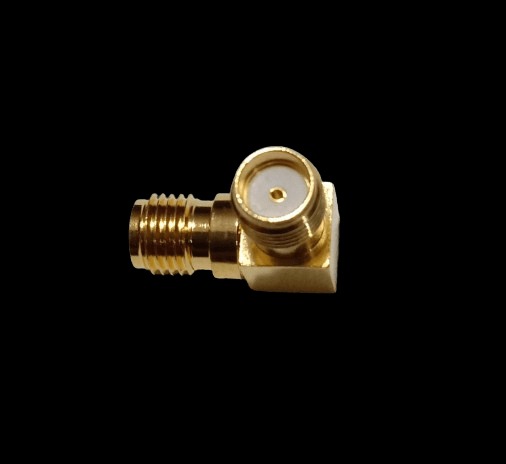

SMA(F) TO SMA(F) RA ADAPTOR 4GHZ

1. Connector Types:
   • SMA Female:
     • Connector Type: SMA (SubMiniature version A)
     • Gender: Female (with a central socket and threaded shield)
     • Size: Compact and precision RF connector known for high performance and reliability.
   • Right Angle Design:
     • Configuration: Right-angle (RA) design allows the adapter to make a 90-degree turn, ideal for fitting into tight spaces or for routing cables at angles.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively at frequencies up to 4 GHz, suitable for RF and communication applications within this frequency range.
3. Impedance:
   • 50 Ohms:
     • SMA Connectors: Typically 50 ohms, which is standard for many RF applications. Proper impedance matching is essential to avoid signal reflections and ensure efficient signal transfer.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, often plated with nickel or gold to enhance conductivity and resist corrosion.
   • Design: The right-angle design provides a 90-degree bend, reducing stress on cables and connectors while facilitating easier routing in constrained spaces.
5. Applications:
   • RF Testing: Useful for connecting or extending RF equipment with SMA connectors in test setups requiring up to 4 GHz performance.
   • Communication Systems: Facilitates connections in communication systems where SMA connectors are used and where a right-angle connection is beneficial for cable management.
   • Antenna Systems: Allows for connections between antennas and devices with SMA connectors, useful in setups where space or cable routing requires a right-angle connection.
   • Space-Constrained Applications: Ideal for applications with limited space where a straight connector would be impractical.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer, which is crucial for maintaining signal integrity.
   • Reliable Performance: Capable of operating effectively up to 4 GHz, suitable for a range of RF and communication systems.
   • Durability: Built to withstand frequent connections and disconnections, providing long-term reliability.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For higher frequency applications, consider an adapter rated for those frequencies.
• Ensure Proper Installation: Install the adapter carefully to avoid stressing the connectors and cables. The right-angle design is intended to facilitate easy routing, so ensure it aligns correctly with your equipment.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to maintain optimal performance.

This SMA Female to SMA Female Right Angle (RA) Adapter 4 GHz provides a reliable and practical solution for connecting RF and communication systems where space constraints or cable routing requires a 90-degree angle, ensuring good performance and signal integrity up to 4 GHz.
