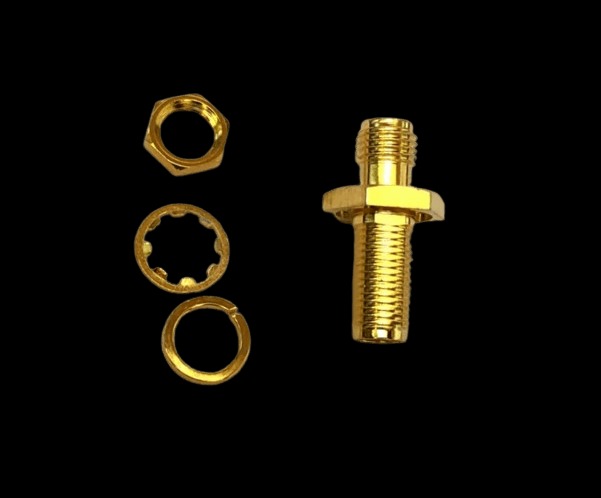

SMA(M) TO SMA(F) ADAPTOR 18GHZ

1. Connector Types:
   • SMA Male (M):
     • External Threads: For coupling with SMA female connectors.
     • Center Pin: Provides the electrical connection.
   • SMA Female (F):
     • Internal Threads: Accepts the SMA male connector.
     • Center Contact: Interfaces with the SMA male pin.
2. Configuration:
   • Straight Through: Connects an SMA male to an SMA female in a direct line.
3. Frequency Range:
   • Up to 18 GHz: Designed to handle high-frequency signals up to 18 GHz, suitable for high-performance RF and microwave applications.
4. Impedance:
   • 50 ohms: Standard impedance for RF and microwave applications, ensuring compatibility with most RF equipment and minimizing signal reflections.
5. Return Loss:
   • Typical Values: Usually around -20 dB or better at 18 GHz, indicating very low signal reflection and good performance.
6. Insertion Loss:
   • Typical Values: Typically around 0.2 dB to 0.3 dB at 18 GHz, reflecting minimal signal attenuation through the adaptor.
7. Materials:
   • Body: Made from brass or aluminum, often with nickel or gold plating for improved conductivity and corrosion resistance.
   • Insulator: Typically PTFE (Teflon) or similar low-loss dielectric material to maintain impedance and performance.
8. Construction:
   • Threaded Coupling: SMA connectors feature a threaded coupling mechanism, ensuring a secure and stable connection.
   • Durability: Designed for high-frequency performance and robust operation.

Applications

• RF Testing: Ideal for connecting test equipment in laboratory environments where high-frequency performance is required.
• Communication Systems: Used in RF communication systems where reliable and high-frequency connections are necessary.
• Broadcasting: Suitable for broadcasting applications that require stable connections at high frequencies.
• Aerospace and Defense: Utilized in aerospace and defense applications for high-frequency and secure connections.

Performance Characteristics

• High Performance: Maintains excellent signal integrity up to 18 GHz.
• Low Loss: Minimizes signal attenuation and maintains high performance.
• Secure Connection: Provides a stable connection with minimal signal loss and reflection.

Considerations

• Connector Compatibility: Ensure that the SMA male and female connectors on the adaptor match the connectors in your system.
• Frequency Range: Verify that the frequency rating of the adaptor matches your application’s requirements to ensure optimal performance.
• Installation: Handle the adaptor carefully during installation to avoid damaging the connectors and to maintain performance.
