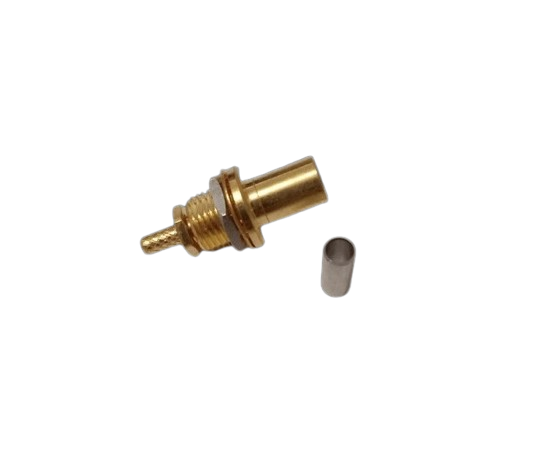

SMB F BH LMR 100 CRIMP

SMB F BH LMR 100 CRIMP

₹85

  1. Connector Type:
    • SMB Female BH LMR 100 Crimp: A female SMB connector designed for LMR-100 coaxial cables, using a crimping mechanism for cable attachment.
  2. Pin Configuration:
    • Crimp Pin: The connector includes a crimp pin that attaches to the center conductor of the LMR-100 cable. Crimping ensures a secure and reliable electrical connection.
  3. Material:
    • Body: Typically constructed from durable metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
    • Contacts: The pin is usually made from high-conductivity metal and may be plated to minimize signal loss and ensure reliable performance.
  4. Cable Compatibility:
    • LMR-100: Designed to fit LMR-100 coaxial cables, which are used in various RF applications. The connector is matched to the mechanical and electrical properties of this cable.
  5. Impedance:
    • 50 Ohms: The connector is typically designed for a 50-ohm impedance to match the LMR-100 cable and ensure minimal signal reflection and optimal performance.
  6. Frequency Range:
    • High Frequency: Suitable for high-frequency applications, typically effective up to several GHz depending on the specific connector design.
  7. Installation:
    • Crimping: The connector is attached to the cable by crimping the cable’s center conductor and shield onto the connector using a crimping tool.
    • Mounting: If “BH” refers to a bulkhead or panel-mount configuration, the connector is designed for mounting on panels or enclosures.
    • Tools Required: Crimping tool is necessary for proper installation.
  8. Applications:
    • Communication Systems: Used in RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
    • Broadcasting: Suitable for broadcast equipment requiring reliable signal transmission.
    • General RF Applications: Ideal for various RF applications needing a compact and reliable connection.
Categories: , , Tag:

This SMB female bulkhead connector is tailored for LMR 100 cable with a crimp termination. It is designed for RF applications requiring secure and reliable connections in compact environments. The bulkhead mounting ensures a stable installation, making it suitable for panel-mounted applications. The connector’s crimp design guarantees minimal signal loss, ensuring optimal performance across a wide range of frequencies. Ideal for communication systems where space and reliability are critical, this connector provides  long-term durability in various operating conditions. |

  • SMB F BH LMR 100 CRIMP is a female SMB (SubMiniature version B) connector that interfaces with LMR-100 coaxial cables. It features a crimping mechanism for attaching to the cable.
  • “SMB” refers to the connector series, which is known for its small size and snap-on coupling mechanism.
  • “F” indicates that the connector is female, meaning it has internal pins or sockets that mate with male connectors.
  • “BH” likely refers to a specific mounting style or feature related to the connector. In this context, it could imply a bulkhead or panel-mount configuration.
  • “LMR 100” specifies that the connector is designed to work with LMR-100 coaxial cables.
  • “CRIMP” signifies that the connector uses a crimping method to attach to the cable.
Weight 0.1 kg
