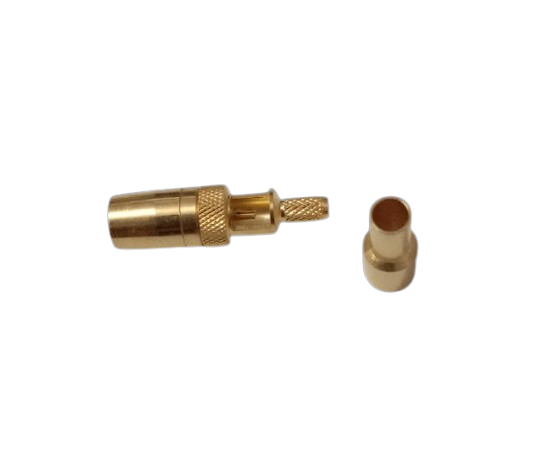

SMB F LMR 100 CPS
- Connector Type:
- SMB Female LMR 100 CPS: A female SMB connector designed for use with LMR-100 coaxial cables, utilizing a compression fitting mechanism for cable attachment.
- Pin Configuration:
- Compression Pin: The connector features a compression pin that attaches to the center conductor of the LMR-100 cable. The compression mechanism ensures a secure and stable electrical connection.
- Material:
- Body: Typically made from robust metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
- Contacts: The internal contacts are generally made from high-conductivity metals and may be plated to minimize signal loss.
- Cable Compatibility:
- LMR-100: Designed specifically to work with LMR-100 coaxial cables, which have particular mechanical and electrical characteristics suitable for high-frequency applications.
- Impedance:
- 50 Ohms: The connector is typically designed for a 50-ohm impedance, matching the LMR-100 cable to ensure minimal signal reflection and optimal performance.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, typically effective up to several GHz depending on the connector design.
- Installation:
- Compression Fitting: The connector is attached to the cable using a compression fitting mechanism, which involves compressing a ferrule around the cable to create a secure and stable connection.
- Tools Required: A compression tool is necessary to install the connector properly.
- Applications:
- Communication Systems: Used in RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Suitable for broadcast equipment where reliable signal transmission is critical.
- General RF Applications: Ideal for various RF applications requiring a compact, high-performance connection.
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The SMB female connector for LMR 100 cable features a compression (CPS) termination, designed for RF applications where secure and low-loss connections are required. This connector is ideal for systems demanding consistent high-frequency performance and durability. The compression termination ensures ease of installation and a stable connection, making it suitable for both indoor and outdoor use. The connector is engineered to maintain optimal performance in various environmental conditions, providing long-term reliability for communication and industrial applications.
- SMB F LMR 100 CPS is a female SMB (SubMiniature version B) connector that is used with LMR-100 coaxial cables. It features a compression fitting mechanism for cable attachment.
- “SMB” refers to the connector type, known for its compact size and reliable snap-on coupling.
- “F” denotes that the connector is female, meaning it has internal contacts that mate with male connectors.
- “LMR 100” specifies compatibility with LMR-100 coaxial cables.
- “CPS” stands for “Compression”, indicating that the connector uses a compression fitting mechanism for attachment.
| Weight | 0.1 kg |
|---|
