SMB M BIG RA BT 3002 CRIMP
SMB M BIG RA BT 3002 CRIMP

SMB M BIG RA BT 3002 CRIMP

₹99

  1. Connector Type:

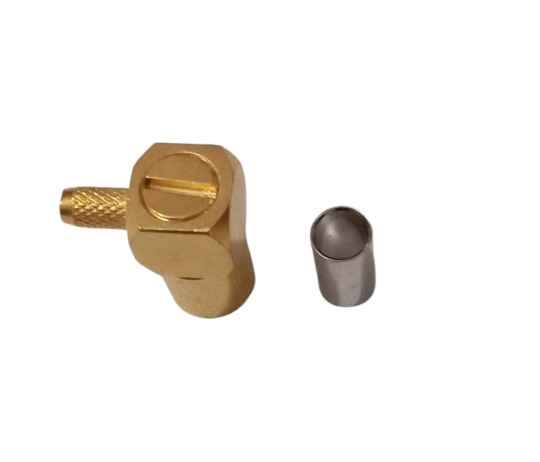

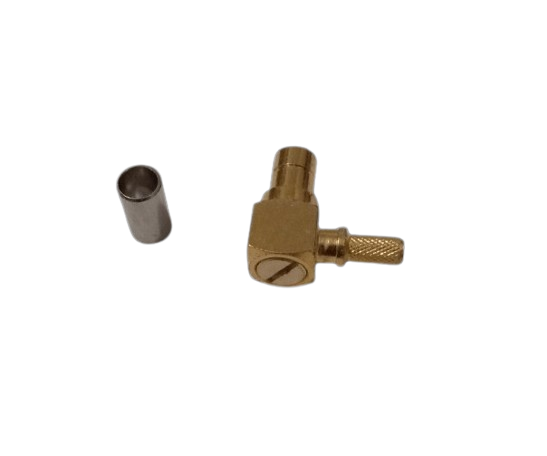

    • SMB Male Big Right-Angle BT 3002 Crimp: A male SMB connector designed for BT 3002 coaxial cables, with a right-angle design and a larger size, utilizing a crimping mechanism for attachment.
  2. Pin Configuration:
    • Crimp Pin: Features a crimp pin that attaches to the center conductor of the BT 3002 cable, ensuring a secure and reliable electrical connection.
  3. Material:
    • Body: Made from durable materials such as brass or stainless steel, often with plating like nickel or gold to enhance conductivity and resist corrosion.
    • Contacts: Internal contacts are made from high-conductivity metals and may be plated to minimize signal loss.
  4. Cable Compatibility:
    • BT 3002: Specifically designed for BT 3002 coaxial cables, used in various RF and communication systems.
  5. Impedance:
    • 50 Ohms: Typically designed for a 50-ohm impedance, ensuring minimal signal reflection and optimal performance.
  6. Frequency Range:
    • High Frequency: Suitable for high-frequency applications, generally effective up to several GHz depending on the connector design.
  7. Installation:
    • Crimping: The connector is attached using a crimping tool. The crimping process secures the center conductor and shield of the cable.
    • Right-Angle Design: Allows for better routing in tight or confined spaces, making it easier to manage cable placement.
    • Larger Size: The “BIG” designation means this connector is larger than standard SMB connectors, which can be advantageous for specific applications requiring a more robust connection.
    • Tools Required: A crimping tool is necessary for installation.
  8. Applications:
    • Communication Systems: Ideal for RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
    • Broadcasting: Suitable for broadcast equipment where reliable and robust connections are critical.
    • General RF Applications: Used in various RF applications where space constraints and the need for a sturdy connection are factors.
Categories: , , Tag:

The SMB male right-angle connector, designed for BT 3002 cable, features a large form factor and a crimp termination. The right-angle design is perfect for applications with limited space, allowing for easy cable routing while maintaining secure connections. This connector provides reliable RF performance with minimal signal attenuation, making it ideal for high-frequency communication systems. The large size accommodates higher power levels, ensuring consistent performance even in challenging environments.

  • SMB M BIG RA BT 3002 CRIMP is a male SMB connector with a right-angle design and a larger size, intended for use with BT 3002 coaxial cables. It employs a crimping method to attach securely to the cable.
  • “SMB” refers to the SMB series, known for compact, high-frequency connectors.
  • “M” indicates that the connector is male, meaning it has external pins that connect with female connectors.
  • “BIG” signifies that the connector is larger than standard SMB connectors, which can provide a more robust connection or accommodate larger cables.
  • “RA” stands for “Right-Angle,” indicating a 90-degree bend in the connector to facilitate installation in tight spaces.
  • “BT 3002” specifies compatibility with BT 3002 coaxial cables.
  • “CRIMP” denotes that the connector uses a crimping mechanism to secure the connecter.
