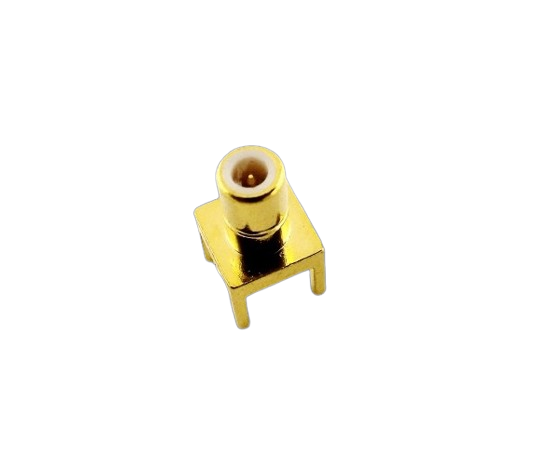

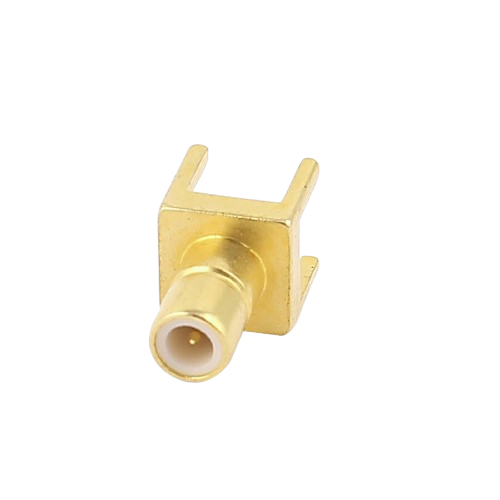

SMB M PCB SOLDER
- Connector Type:
- SMB Male PCB Solder: A male SMB connector designed for direct soldering onto a printed circuit board.
- Pin Configuration:
- Solder Pins: The connector has pins designed for soldering to the PCB. These pins provide the electrical connection and mechanical support.
- Material:
- Body: Typically made from durable materials such as brass or stainless steel, often plated with nickel or gold to enhance conductivity and resist corrosion.
- Contacts: Internal contacts are made from high-conductivity metals, often plated to reduce signal loss.
- Cable Compatibility:
- General Compatibility: While not specifically tied to a cable type, this connector is used in applications where a PCB mount is required and may be compatible with various coaxial cables, depending on the system design.
- Impedance:
- 50 Ohms: Often designed for a 50-ohm impedance to match with the connected RF systems and minimize signal reflection.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the connector design and PCB layout.
- Installation:
- Soldering: The connector is mounted on the PCB by inserting the pins through the board and soldering them in place. This method ensures a strong electrical connection and stable mechanical attachment.
- Tools Required: A soldering iron and solder are necessary for installation.
- Applications:
- Communication Systems: Used in RF communication systems, including antennas, transmitters, and receivers, where a stable PCB connection is required.
- Broadcasting: Suitable for broadcast equipment where reliable connections are crucial.
- Consumer Electronics: Often used in various electronic devices and systems where compact and secure PCB-mounted connectors are needed.
₹99
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The SMB male PCB mount connector with solder termination is designed for secure and reliable connections in RF applications. This connector is ideal for systems where a robust and durable connection is essential. The PCB mount design allows for easy integration into circuit boards, ensuring a stable connection. The solder termination provides a secure and consistent connection, suitable for high-frequency applications. This connector is built to withstand various environmental conditions, making it a reliable choice long term use in communication system
- SMB M PCB SOLDER is a male SMB connector that is mounted directly onto a PCB using soldering techniques. It is designed to provide a reliable and stable electrical connection for high-frequency applications.
- “SMB” stands for SubMiniature version B, a series of connectors known for their compact size and high-frequency performance.
- “M” indicates that the connector is male, meaning it has external pins that mate with female connectors.
- “PCB” signifies that the connector is intended for mounting on a printed circuit board.
- “SOLDER” denotes that the connector uses soldering for attachment to the PCB.
| Weight | 0.1 kg |
|---|
