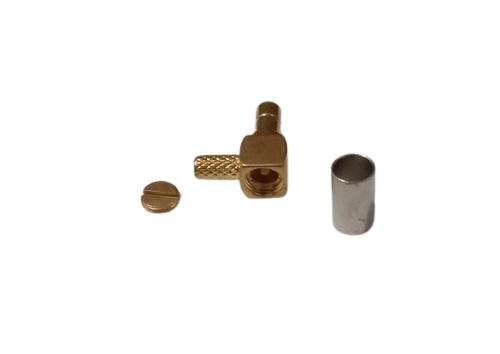

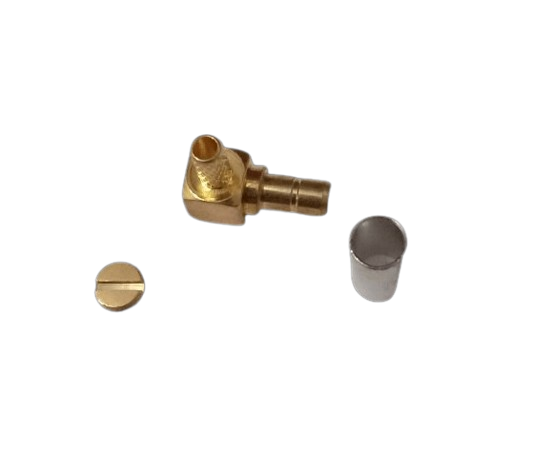

SMB M RA BT 3002 CRIMP
SMB M RA BT 3002 CRIMP

SMB M RA BT 3002 CRIMP

₹110

  1. Connector Type:
    • SMB Male Right-Angle BT 3002 Crimp: A male SMB connector designed for BT 3002 coaxial cables, featuring a right-angle design and using a crimping mechanism for attachment.
  2. Pin Configuration:
    • Crimp Pin: The connector includes a crimp pin that attaches to the center conductor of the BT 3002 cable. Crimping provides a secure and reliable electrical connection.
  3. Material:
    • Body: Typically made from durable metals such as brass or stainless steel, often with plating like nickel or gold to improve conductivity and resist corrosion.
    • Contacts: Internal contacts are made from high-conductivity metals and may be plated to minimize signal loss.
  4. Cable Compatibility:
    • BT 3002: Designed specifically for BT 3002 coaxial cables, which are used in various RF and communication applications.
  5. Impedance:
    • 50 Ohms: The connector is typically designed for a 50-ohm impedance, matching the BT 3002 cable for minimal signal reflection and optimal performance.
  6. Frequency Range:
    • High Frequency: Suitable for high-frequency applications, effective up to several GHz depending on the specific connector design.
  7. Installation:
    • Crimping: The connector is attached to the cable using a crimping tool. The crimping process secures the cable’s center conductor and shield.
    • Right-Angle Design: Facilitates installation in tight or confined spaces, making it easier to route the cable in constrained areas.
    • Tools Required: A crimping tool is necessary for proper installation.
  8. Applications:
    • Communication Systems: Used in RF communication systems including antennas, transmitters, receivers, and other high-frequency equipment.
    • Broadcasting: Suitable for broadcast equipment where reliable signal transmission is essential.
    • General RF Applications: Ideal for various RF applications where space constraints and high-frequency performance are required.
Categories: , , Tag:

The SMB male right-angle connector is designed for BT 3002 cable with a crimp termination. The right-angle design is perfect for applications with limited space, allowing for easy cable routing while maintaining secure connections. This connector offers reliable RF performance with low signal attenuation, making it ideal for high-frequency communication systems that demand consistent and durable connections. It is well-suited for use in both commercial and industrial environments. |

  • SMB M RA BT 3002 CRIMP is a male SMB connector with a right-angle design, intended for BT 3002 coaxial cables. It uses a crimping method to secure the connector to the cable.
  • “SMB” refers to the SMB series, known for its compact size and reliable snap-on coupling mechanism.
  • “M” indicates that the connector is male, meaning it has external pins that connect with female connectors.
  • “RA” stands for “Right-Angle,” meaning the connector is designed with a 90-degree angle to fit into confined or tight spaces.
  • “BT 3002” specifies that the connector is compatible with BT 3002 coaxial cables.
  • “CRIMP” indicates that the connector employs a crimping mechanism for attachment|
