- Connector Type:

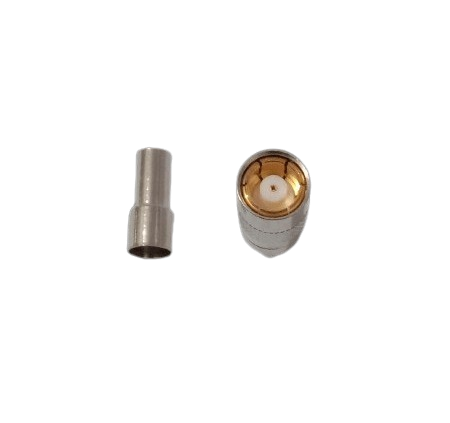

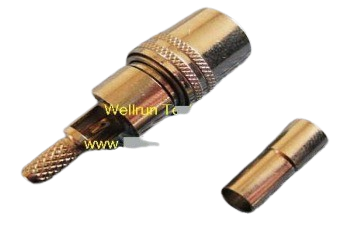

- SMZ Female BT 3002 Compression: A female connector for BT 3002 cables, using a compression mechanism for secure attachment.
- Pin Configuration:
- Compression Socket: The connector features a compression socket designed to fit and secure the center conductor of the BT 3002 cable. The compression method ensures a reliable and stable connection.
- Material:
- Body: Usually constructed from durable materials such as brass or stainless steel, often with plating like nickel or gold for enhanced conductivity and resistance to corrosion.
- Contacts: Internal contacts are made from high-conductivity metals, often plated to minimize signal loss.
- Cable Compatibility:
- BT 3002: Specifically designed for use with BT 3002 coaxial cables, which are often used in RF and communication applications.
- Impedance:
- Typically 50 Ohms: Designed to match the impedance of the BT 3002 cable to ensure minimal signal reflection and optimal performance.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the specific connector design.
- Installation:
- Compression: The connector is attached to the cable using a compression tool. The compression process involves compressing a ferrule around the cable to create a secure and airtight connection.
- Tools Required: Installation requires a compression tool to ensure proper attachment.
- Applications:
- Communication Systems: Ideal for RF communication systems, including antennas, transmitters, receivers, and other high-frequency devices.
- Broadcasting: Used in broadcast equipment where a secure and reliable connection is necessary.
- General RF Applications: Suitable for various RF applications that require a robust and compact connector.
Advantages
- Secure and Reliable Connection: The compression mechanism provides a strong and stable connection, crucial for maintaining signal integrity.
- Durable Construction: Made from high-quality materials to ensure longevity and performance in demanding environments.
- High-Frequency Performance: Designed to handle high-frequency signals with minimal loss and interference.
- Ease of Installation: Compression connectors are relatively easy to install and remove, providing flexibility in system maintenance.
