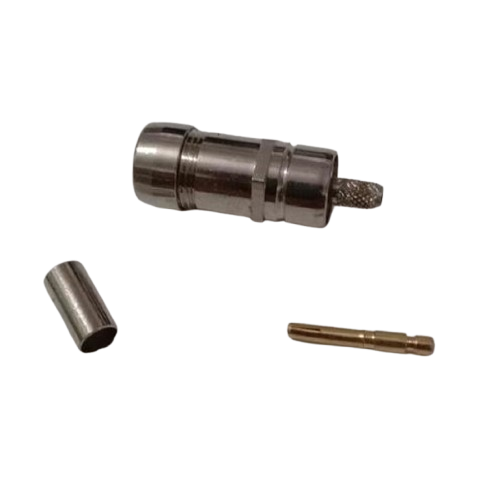

SMZ F BT 3002 CRIMP

1. Connector Type:
   • SMZ Female BT 3002 Crimp: A female connector designed for BT 3002 coaxial cables, utilizing a crimping attachment method.
2. Pin Configuration:
   • Crimp Socket: The connector features a crimp socket where the center conductor of the BT 3002 cable is attached. The crimping process ensures a strong and stable connection.
3. Material:
   • Body: Typically made from durable metals such as brass or stainless steel, with plating options like nickel or gold to enhance conductivity and resist corrosion.
   • Contacts: Internal contacts are made from high-conductivity materials and are often plated to reduce signal loss.
4. Cable Compatibility:
   • BT 3002: Designed specifically for use with BT 3002 coaxial cables, which are used in various RF and communication applications.
5. Impedance:
   • 50 Ohms: The connector is generally designed for a 50-ohm impedance to match the BT 3002 cable, ensuring minimal signal reflection and optimal performance.
6. Frequency Range:
   • High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the specific connector design.
7. Installation:
   • Crimping: The connector is attached to the cable using a crimping tool. The crimping process involves compressing a metal ferrule around the cable’s center conductor and shield to create a secure connection.
   • Tools Required: Installation requires a crimping tool appropriate for the connector and cable combination.
8. Applications:
   • Communication Systems: Ideal for RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
   • Broadcasting: Used in broadcasting systems where a reliable and secure connection is necessary.
   • General RF Applications: Suitable for various RF applications requiring a compact and durable connector.

Advantages

• Secure Connection: The crimping method provides a robust and stable connection, crucial for maintaining signal integrity and performance.
• Compact Design: The SMZ connector’s compact size is useful for applications with space constraints.
• Durable Construction: Made from high-quality materials to withstand mechanical stress and environmental conditions.
• High-Frequency Performance: Designed to handle high-frequency signals with minimal signal loss and interference.
