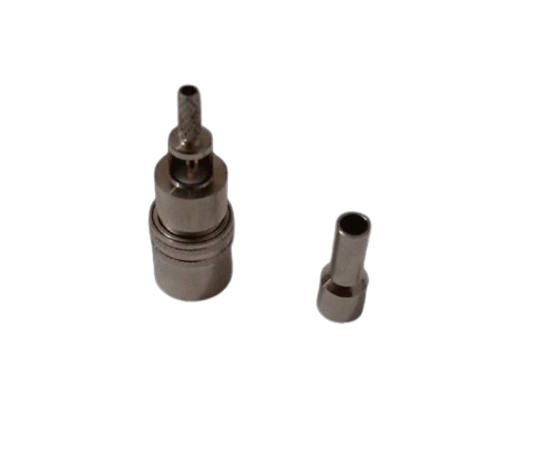

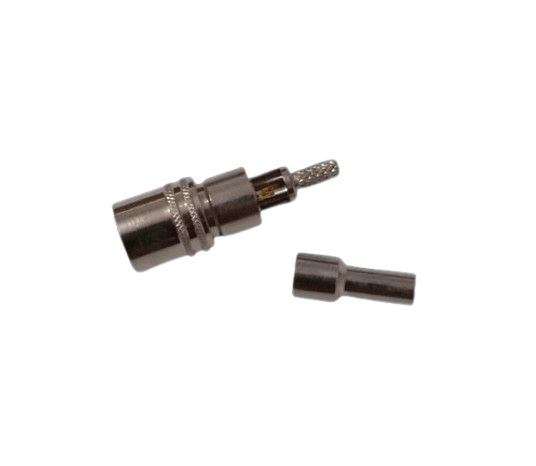

SMZ F LMR 100 CPS
- Connector Type:
- SMZ Female LMR 100 Compression: A female connector designed for LMR-100 coaxial cables, utilizing a compression attachment method.
- Pin Configuration:
- Compression Socket: Features a compression socket designed to fit the center conductor of the LMR-100 cable. The compression method ensures a reliable and stable connection.
- Material:
- Body: Typically made from robust metals such as brass or stainless steel, often plated with nickel or gold to enhance conductivity and prevent corrosion.
- Contacts: Internal contacts are made from high-conductivity materials and are usually plated to minimize signal loss and enhance performance.
- Cable Compatibility:
- LMR-100: Designed to work specifically with LMR-100 coaxial cables, which are used in RF and communication systems.
- Impedance:
- 50 Ohms: The connector is designed to match the 50-ohm impedance of the LMR-100 cable, ensuring minimal signal reflection and optimal performance.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, with performance effective up to several GHz depending on the design.
- Installation:
- Compression: The connector is attached to the cable using a compression tool. This method involves compressing a metal ferrule around the cable’s center conductor and shield to create a secure and airtight connection.
- Tools Required: A compression tool specific to the connector and cable is needed for installation.
- Applications:
- Communication Systems: Ideal for RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Used in broadcasting equipment where a reliable and stable connection is crucial.
- General RF Applications: Suitable for various RF applications requiring a compact and durable connector.
₹99
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The SMZ female connector for LMR 100 cable features a compression (CPS) termination, designed for RF applications where secure and low-loss connections are required. This connector is ideal for systems demanding consistent high-frequency performance and durability. The compression termination ensures ease of installation and a stable connection, making it suitable for both indoor and outdoor use. The connector is engineered to maintain optimal performance in various environmental conditions, providing long-term reliability for communication and industrial applications. |
- SMZ F LMR 100 CPS is a female connector in the SMZ series, compatible with LMR-100 coaxial cables. It uses a compression (CPS) mechanism for securing the connection.
- “SMZ” signifies a particular series within the connector family, typically used for RF (Radio Frequency) applications.
- “F” indicates that the connector is female, meaning it has internal contacts that mate with male connectors.
- “LMR 100” specifies compatibility with LMR-100 coaxial cables.
- “CPS” stands for Compression, referring to the method used to attach the connector to the cable.
| Weight | 0.1 kg |
|---|
