- Connector Type:

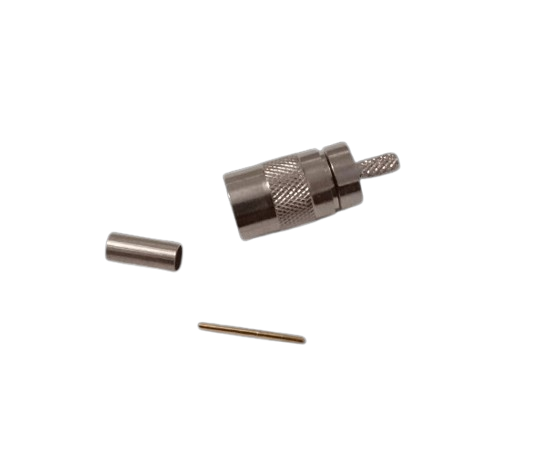

- SMZ Female LMR 100 Crimp: A female connector designed for LMR-100 cables, utilizing a crimping method for secure attachment.
- Pin Configuration:
- Crimp Socket: Features a crimp socket that attaches to the center conductor of the LMR-100 cable. This method ensures a strong and stable connection.
- Material:
- Body: Usually made from durable metals like brass or stainless steel, often with plating options such as nickel or gold to enhance conductivity and resist corrosion.
- Contacts: Internal contacts are made from high-conductivity materials and are often plated to minimize signal loss and improve performance.
- Cable Compatibility:
- LMR-100: Designed specifically for use with LMR-100 coaxial cables, which are often used in RF and communication applications.
- Impedance:
- 50 Ohms: The connector typically matches the 50-ohm impedance of the LMR-100 cable to ensure minimal signal reflection and optimal performance.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the specific connector design.
- Installation:
- Crimping: The connector is attached to the cable using a crimping tool. The crimping process involves compressing a ferrule around the cable’s center conductor and shield to create a secure connection.
- Tools Required: A crimping tool that is compatible with the connector and cable is required for installation.
- Applications:
- Communication Systems: Ideal for RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Used in broadcasting equipment where a secure and reliable connection is critical.
- General RF Applications: Suitable for various RF applications that require a compact and dependable connector.
Advantages
- Secure Connection: The crimping method provides a strong and reliable connection that is crucial for maintaining signal integrity.
- Compact Design: The SMZ connector’s compact size is beneficial for applications with limited space.
- Durable Construction: Made from high-quality materials to withstand mechanical stress and environmental conditions.
- High-Frequency Performance: Designed to handle high-frequency signals with minimal loss and interference.
