- Connector Type:

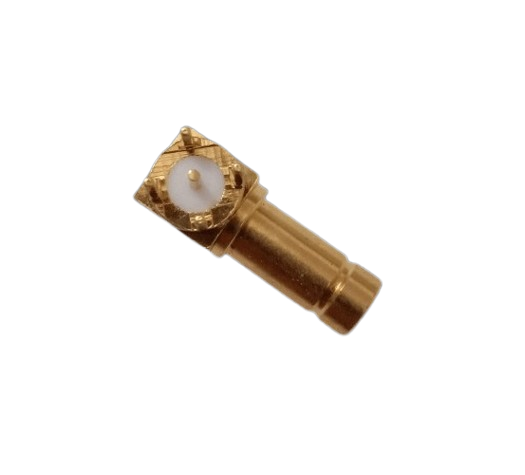

- SMZ Male Right Angle PCB Solder: A male connector designed for PCB mounting with a right-angle configuration, featuring a solder attachment method.
- Pin Configuration:
- Solder Pins: Includes solder pins that are designed to be inserted into the PCB and soldered in place. The right-angle design allows for connections to be made perpendicular to the board.
- Material:
- Body: Typically made from durable metals such as brass or stainless steel, often plated with nickel or gold to improve conductivity and prevent corrosion.
- Contacts: The internal contacts are made from high-conductivity materials and are often plated to minimize signal loss and ensure reliable performance.
- PCB Compatibility:
- Mounting: Designed for mounting on a printed circuit board, with pins oriented at a right angle to the board surface.
- Impedance:
- 50 Ohms or 75 Ohms: Available in different impedances depending on the specific requirements of the application. The 50-ohm impedance is common in RF applications, but other impedances might be available.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, with effective performance up to several GHz, depending on the specific connector design.
- Installation:
- Soldering: The connector is installed by inserting the pins into the PCB and soldering them in place. This method ensures a strong and stable electrical connection.
- Tools Required: Soldering tools, including a soldering iron and solder, are necessary for installation.
- Applications:
- Communication Systems: Ideal for use in RF communication systems, including antennas, transmitters, and receivers.
- Broadcasting: Used in broadcasting equipment where a secure and reliable connection is essential.
- General RF Applications: Suitable for various RF applications requiring a compact and dependable connector mounted on a PCB.
Advantages
- Compact Design: The right-angle configuration and small size make it ideal for applications with space constraints on the PCB.
- Secure Connection: Soldering provides a permanent and reliable connection, crucial for maintaining signal integrity and performance.
- Durable Construction: Made from high-quality materials to withstand mechanical stress and environmental conditions.
- High-Frequency Performance: Designed to handle high-frequency signals with minimal interference and signal loss.
