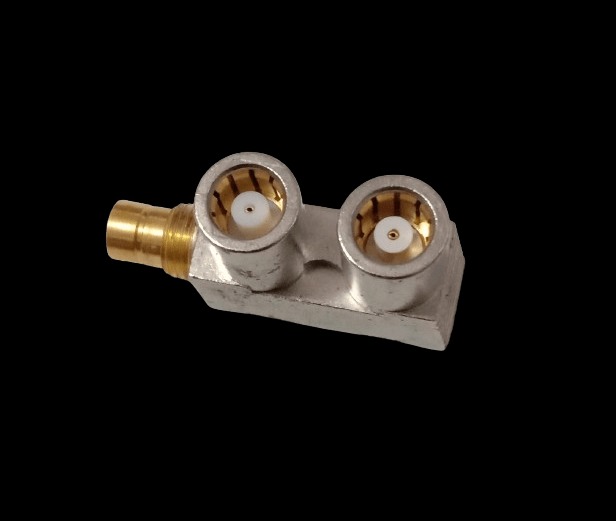

SMZ U LINK M F F 3 PORT

1. Connector Type:
   • SMZ U Link 3-Port: A three-port connector designed for RF applications, featuring a combination of male and female connectors in a specific configuration.
2. Pin Configuration:
   • Ports: Typically includes one male port and two female ports or one female port and two male ports, depending on the design. The exact configuration can vary based on the model.
3. Material:
   • Body: Usually constructed from durable metals such as brass or stainless steel, often plated with nickel or gold to enhance conductivity and resist corrosion.
   • Contacts: Internal contacts are made from high-conductivity materials and are often plated to reduce signal loss.
4. Cable Compatibility:
   • Connector Series: Designed to work with cables that match the SMZ series specifications. Compatibility may include various RF coaxial cables depending on the impedance and application requirements.
5. Impedance:
   • 50 Ohms or 75 Ohms: The connector can be designed for either 50-ohm or 75-ohm impedance, depending on the application. 50-ohm is common for RF applications, while 75-ohm is often used for video applications.
6. Frequency Range:
   • High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the design and application.
7. Installation:
   • Mounting and Connections: Typically involves connecting the ports to cables or devices using appropriate connectors. Installation may vary based on whether the connector is mounted on a panel or used in-line.
8. Applications:
   • Signal Splitting/Combining: Used for splitting or combining RF signals in communication systems, allowing multiple devices to connect through a single interface.
   • Communication Systems: Ideal for RF communication systems where signal routing and distribution are required.
   • Broadcasting: Used in broadcasting setups for distributing signals to multiple devices or antennas.

Advantages

• Versatile Connection: The three-port design allows for versatile signal distribution or combining, making it useful in complex RF setups.
• Compact Design: The SMZ series offers a compact design that is beneficial in applications with limited space.
• Durable Construction: Built from high-quality materials to withstand mechanical stress and environmental conditions.
• High-Frequency Performance: Designed to maintain signal integrity and performance across high-frequency ranges.
