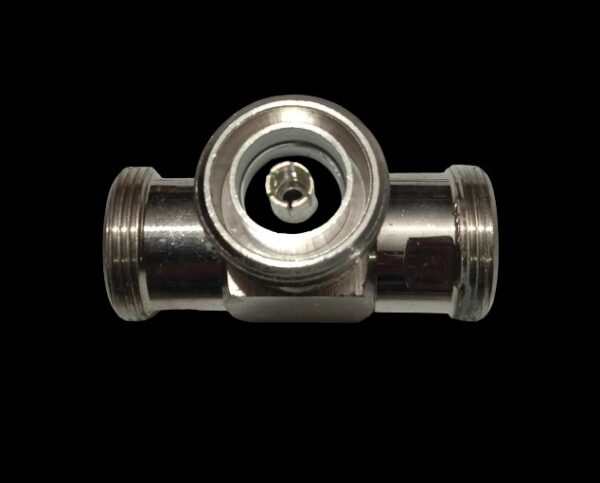

T TYPE DIN (F-F-F) ADAPTOR 7.5GHZ

1. Frequency Range:
   • Up to 7.5 GHz: Designed to operate effectively up to 7.5 GHz, making it suitable for many high-frequency RF applications.
2. Impedance:
   • 50 Ohms: DIN connectors are typically used in 50-ohm systems, ensuring proper signal matching and minimizing reflections.
3. Connector Types:
   • DIN Female: All three connectors are DIN female connectors, featuring a center socket and a threaded coupling mechanism for secure connection.
4. Insertion Loss:
   • Typically ≤ 0.3 dB: Indicates the amount of signal power lost as it passes through the adapter. Lower insertion loss is better for maintaining signal integrity.
5. Return Loss:
   • Typically ≥ 15 dB: Reflects how well the adapter maintains impedance matching. Higher return loss values indicate better performance with less signal reflection.
6. VSWR (Voltage Standing Wave Ratio):
   • Typically ≤ 1.5: Shows how effectively the adapter maintains impedance and minimizes signal reflections. Lower VSWR values are preferable for maintaining signal quality.
7. Construction Material:
   • Body: Typically made from durable materials such as brass or stainless steel.
   • Plating: Often gold or nickel-plated to ensure good conductivity and resistance to corrosion.
8. Temperature Range:
   • Typically -55°C to +165°C: Ensures reliable operation across a wide range of environmental conditions.
9. Size and Weight:
   • Compact Design: Designed to be compact and robust, suitable for integration into RF systems with limited space.

Example Part Number:

• Manufacturer: RF component suppliers such as Amphenol, Pasternack, or similar companies offer DIN adapters.
• Part Number Example: Models like Pasternack PE4698 or similar might be used. Verify the exact part number and specifications with the supplier to ensure it fits your needs.

Applications:

• High-Frequency RF Systems: Distributes or combines signals in RF systems where DIN connectors are used.
• Communication Equipment: Useful for applications that require splitting or combining signals with DIN connectors.
• Test and Measurement: Common in RF testing setups where signal routing or distribution is needed.

Visual Inspection:

• Connector Compatibility: Ensure that all three DIN female connectors are properly aligned and securely threaded for reliable connections.

When selecting a T-Type DIN (Female-Female-Female) adapter, ensure it meets your frequency, impedance, and performance requirements. Always refer to datasheets and specifications provided by the manufacturer to ensure compatibility and optimal performance for your specific application.
