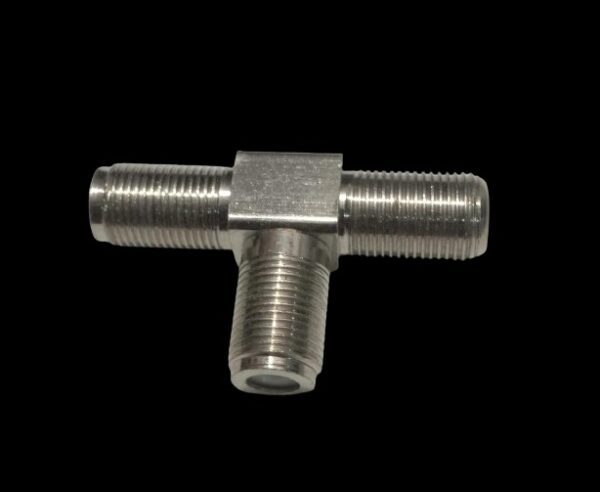

T TYPE F (F-F-F) ADAPTOR 3GHZ

1. Frequency Range:
   • Up to 3 GHz: Effective up to 3 GHz, making it suitable for many RF and signal distribution applications. Confirm this range is appropriate for your specific needs.
2. Impedance:
   • 75 Ohms: F-type connectors are typically used in 75-ohm systems, which are common in video and broadcast applications.
3. Connector Types:
   • F Female: All three connectors are F-type female connectors, featuring a center socket and a threaded coupling mechanism for secure connection.
4. Insertion Loss:
   • Typically ≤ 0.5 dB: Represents the amount of signal power lost as it passes through the adapter. Lower insertion loss is better for maintaining signal strength.
5. Return Loss:
   • Typically ≥ 15 dB: Indicates how well the adapter maintains impedance matching. Higher return loss values reflect less signal reflection and better performance.
6. VSWR (Voltage Standing Wave Ratio):
   • Typically ≤ 1.5: Shows how effectively the adapter maintains impedance and minimizes signal reflections. Lower VSWR values are preferable for preserving signal quality.
7. Construction Material:
   • Body: Typically made from durable materials such as brass or stainless steel.
   • Plating: Often gold or nickel-plated to ensure good conductivity and resistance to corrosion.
8. Temperature Range:
   • Typically -55°C to +165°C: Ensures reliable operation in various environmental conditions.
9. Size and Weight:
   • Compact Design: Designed to be compact and durable, suitable for integration into RF and signal distribution systems with space constraints.

Example Part Number:

• Manufacturer: Look for RF and signal distribution component suppliers such as Amphenol, Pasternack, or similar companies.
• Part Number Example: Models like Pasternack PE4515 or similar might be used. Always verify the exact part number and specifications with the supplier.

Applications:

• RF and Signal Distribution Systems: Distributes or combines signals in systems that use F-type connectors.
• Video and Broadcast Applications: Common in video and broadcast equipment where F-type connectors are standard.
• Test and Measurement: Useful in setups where splitting or combining signals is required.

Visual Inspection:

• Connector Compatibility: Ensure that all three F-type female connectors are properly aligned and threaded for secure connection.

When selecting a T-Type F (Female-Female-Female) adapter, ensure it meets your frequency, impedance, and performance requirements. Always consult datasheets and specifications provided by the manufacturer to ensure compatibility and optimal performance for your specific application.
