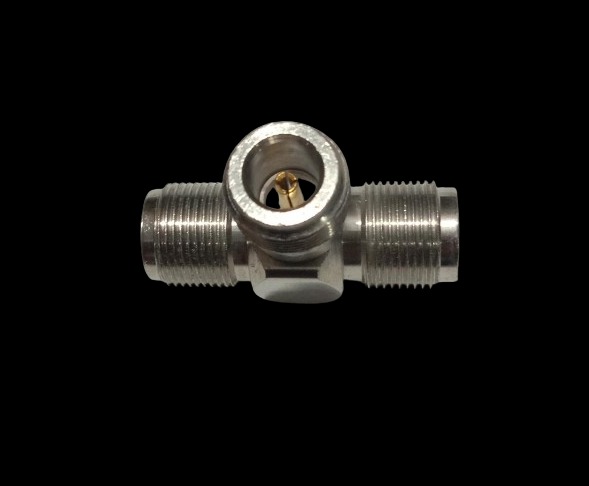

T TYPE N (F-F-F) ADAPTOR 3GHZ

1. Frequency Range:
   • Up to 3 GHz: Designed to operate effectively up to 3 GHz. Ensure this frequency range is appropriate for your application needs.
2. Impedance:
   • 50 Ohms: Standard impedance used for RF applications, ensuring proper signal matching and minimal signal reflection.
3. Connector Types:
   • N Female: All three connectors are N-type female connectors, featuring a center socket and a threaded coupling mechanism.
4. Insertion Loss:
   • Typically ≤ 0.3 dB: Indicates the amount of signal power lost as it passes through the adapter. Lower insertion loss is better for maintaining signal strength.
5. Return Loss:
   • Typically ≥ 15 dB: Reflects how well the adapter maintains impedance matching. Higher return loss values indicate less signal reflection and better performance.
6. VSWR (Voltage Standing Wave Ratio):
   • Typically ≤ 1.5: Indicates how well the adapter maintains impedance and minimizes signal reflections. Lower VSWR values are preferable for preserving signal quality.
7. Construction Material:
   • Body: Typically made from high-quality materials such as brass or stainless steel.
   • Plating: Often gold or nickel-plated to ensure good conductivity and resistance to corrosion.
8. Temperature Range:
   • Typically -55°C to +165°C: Ensures reliable operation in various environmental conditions.
9. Size and Weight:
   • Compact Design: Designed to be compact and robust, suitable for integration into RF systems with space constraints.

Example Part Number:

• Manufacturer: RF component suppliers such as Amphenol, Pasternack, or similar companies offer T-type adapters.
• Part Number Example: You might find models like Pasternack PE4457 or similar. Always verify the exact part number and specifications with the supplier.

Applications:

• RF and Microwave Systems: Distributes or combines signals in RF and microwave applications.
• Communication Equipment: Useful for splitting signals to multiple devices or combining signals from multiple sources.
• Test and Measurement: Commonly used in RF testing setups where signal routing is required.

Visual Inspection:

• Connector Compatibility: Ensure that all three N-type female connectors are properly matched with the correct pin and socket configurations for a secure connection.

When selecting a T-Type N (F-F-F) adapter, ensure it meets your frequency, impedance, and performance requirements. Always consult datasheets and specifications provided by the manufacturer to ensure compatibility and optimal performance for your specific application.
