TNC M LMR 240 CLAMP
- Prepare the Cable:
– Strip the Outer Jacket: Use a cable stripping tool to remove approximately 1.5 inches of the outer jacket from the LMR 240 cable. Be careful not to damage the underlying braided shield.
– Expose the Shielding: Pull back the braided shield to reveal the dielectric insulation. Trim any excess shielding to make sure it fits neatly inside the connector.
– Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of the exposed center conductor should be around 1/4 to 1/2 inch. - Prepare the Connector:
– Slide on the Clamp or Ferrule: If the TNC male connector includes a clamp or ferrule, slide it onto the cable before inserting the cable into the connector. This clamp or ferrule will secure the cable and shield.
– Insert the Cable: Insert the prepared end of the LMR 240 cable into the TNC male connector. Ensure that the center conductor aligns with the center pin of the connector and the shield fits properly against the clamp or ferrule. - Secure the Connection:
– Clamp the Connector: Use a wrench or pliers to tighten the clamp or ferrule onto the cable. This action secures the connector to the cable, ensuring a robust mechanical connection. Make sure the clamp is evenly tightened to avoid any gaps or uneven pressure.
– Crimp the Center Pin: If the connector uses a crimp-style center pin, use the crimping tool to crimp the center pin onto the center conductor of the cable. Ensure the center conductor is fully inserted into the pin before crimping. - Assemble and Insulate (Optional):
– Apply Heat Shrink Tubing: For additional insulation and strain relief, slide heat shrink tubing over the joint and apply heat to shrink it tightly around the connector and cable.
– Inspect the Assembly: Check that the connector is securely attached and that there are no loose or poorly crimped parts. Verify that the center pin and shield are properly connected. - Test the Connection:
– Verify Connections: Ensure that the connector is securely attached and there are no loose parts.
– Test Signal: Optionally, use appropriate testing equipment to verify that the connection is working correctly and that there are no issues with signal transmission.
₹120
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

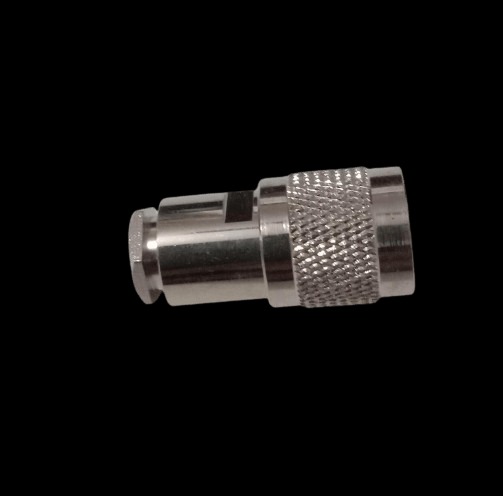

The TNC Male LMR 240 Clamp connector is designed for use with LMR 240 coaxial cables. It features a clamp attachment method, providing a strong and stable connection with minimal signal loss. This connector supports RF applications up to 11 GHz, making it ideal for telecommunications, broadcast, and other high-frequency systems. The TNC Male LMR 240 Clamp connector offers excellent durability and performance in demanding environments.
| Weight | 0.1 kg |
|---|
