- Prepare the Cable:
– Strip the Outer Jacket: Use a cable stripping tool to remove approximately 1.5 inches of the outer jacket from the LMR 200 cable. Be careful not to damage the underlying braided shield.
– Expose the Shielding: Pull back the braided shield to reveal the dielectric insulation. Trim any excess shielding so that it fits neatly inside the connector.
– Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of exposed center conductor should be around 1/4 to 1/2 inch. - Prepare the Connector:
– Slide on the Clamp or Ferrule: If the TNC male right-angle connector includes a clamp or ferrule, slide it onto the cable before inserting the cable into the connector. This clamp will be used to secure the cable and the shield.
– Insert the Cable: Insert the stripped end of the LMR 200 cable into the TNC male right-angle connector. Ensure that the center conductor aligns with the center pin of the connector, and the shield fits properly against the clamp area or ferrule. - Secure the Connection:
– Clamp the Connector: Use a wrench or pliers to tighten the clamp or ferrule onto the cable. This secures the connector to the cable, ensuring a solid mechanical connection. Make sure the clamp is evenly tightened to avoid any gaps.
– Crimp the Center Pin: If the connector uses a crimp-style center pin, use a crimping tool to crimp the center pin onto the center conductor of the cable. Ensure the center conductor is fully inserted into the pin before crimping. - Assemble and Insulate (Optional):
– Apply Heat Shrink Tubing: For additional insulation and strain relief, slide heat shrink tubing over the joint and apply heat to shrink it tightly around the connector and cable.
– Inspect the Assembly: Check that the connector is securely attached and that there are no loose or poorly crimped parts. Ensure the center pin and shield are properly connected. - Test the Connection:
– Verify Connections: Ensure the connector is securely attached and there are no loose parts.
– Test Signal: Optionally, use appropriate testing equipment to ensure the connection is functioning correctly and there are no signal issues.

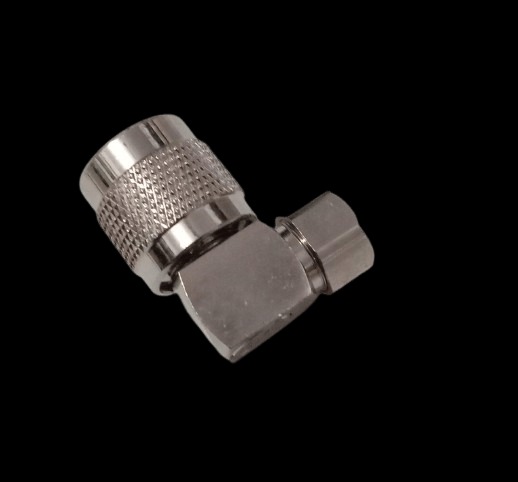

TNC M RA LMR 200 CLAMP
₹135
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

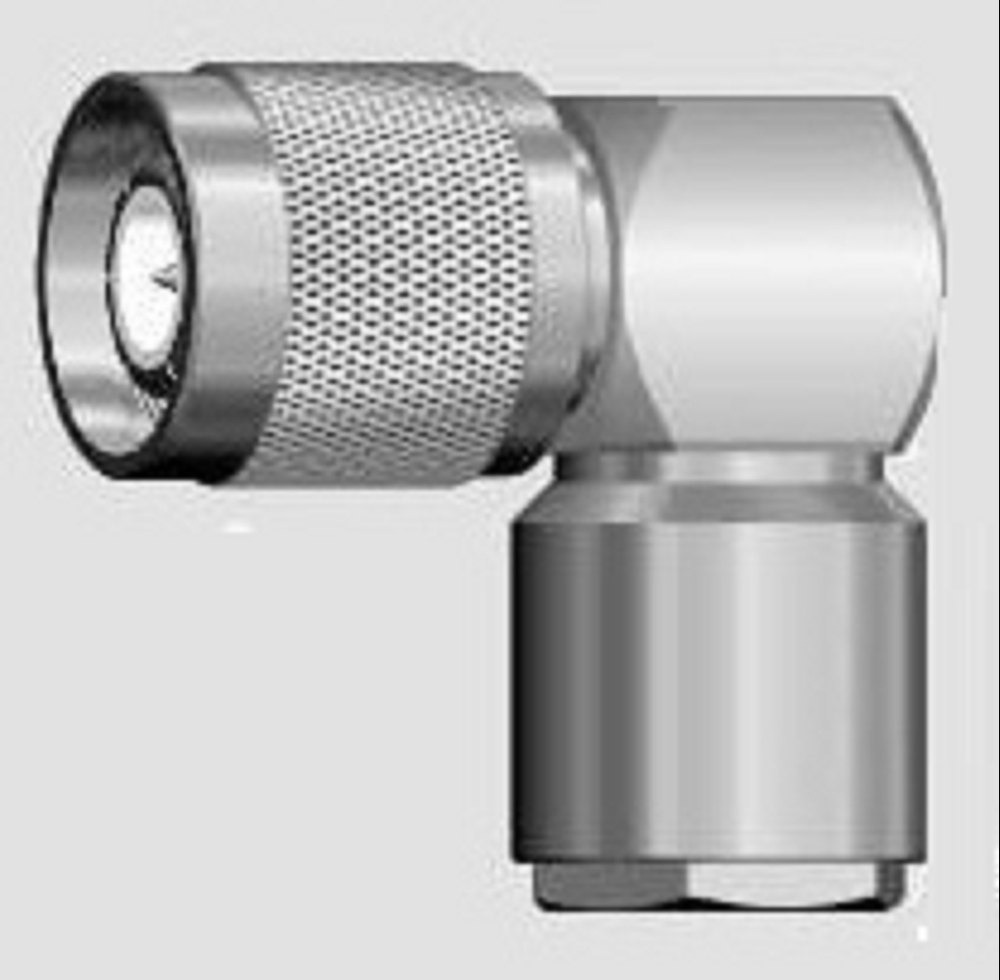

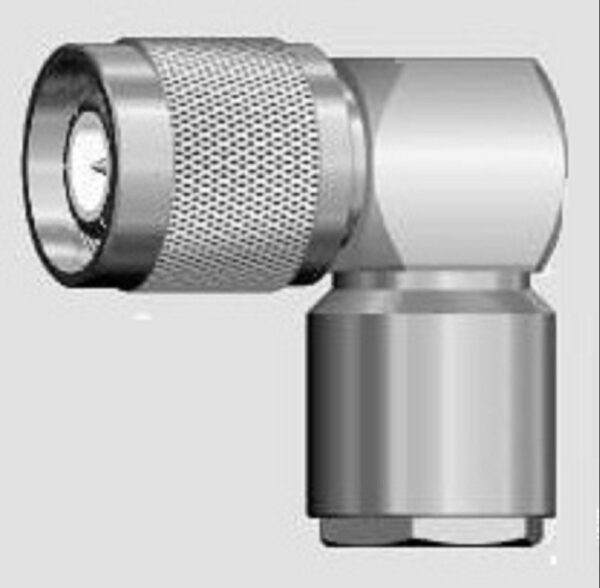

The TNC Male Right Angle LMR 200 Clamp connector is designed for use with LMR 200 coaxial cables. It offers a right-angle configuration that is ideal for tight spaces and uses a clamp attachment method for secure and stable connections. This connector supports RF applications up to 11 GHz and is suitable for telecommunications, wireless communication systems, and other high-frequency environments. The right-angle design allows for flexible cable routing in constrained installations.
| Weight | 0.1 kg |
|---|
