- Prepare the Cable:
– Strip the Outer Jacket: Use a cable stripping tool to remove approximately 1.5 inches (or as specified by the connector manufacturer) of the outer jacket from the LMR 240 cable. Avoid damaging the braided shield underneath.
– Expose the Shielding: Carefully pull back the braided shield to expose the dielectric insulation. Trim any excess shielding to ensure it fits well inside the connector.
– Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of exposed center conductor should be about 1/4 to 1/2 inch. - Prepare the Connector:
– Slide on the Clamp or Ferrule: If the TNC male right-angle connector includes a clamp or ferrule, slide it onto the cable before inserting the cable into the connector. This component is used to secure the cable and shield.
– Insert the Cable: Insert the prepared end of the LMR 240 cable into the TNC male right-angle connector. Make sure the center conductor aligns with the center pin of the connector and the shield aligns with the clamp area. - Secure the Connection:
– Clamp the Connector: Use a wrench or pliers to tighten the clamp or ferrule around the cable. This will secure the connector to the cable and ensure a solid mechanical connection. Tighten evenly to avoid gaps or uneven pressure.
– Crimp the Center Pin: If the connector requires crimping, use the crimping tool to crimp the center pin onto the center conductor of the cable. Ensure the center conductor is fully inserted into the pin before crimping. - Assemble and Insulate (Optional):
– Apply Heat Shrink Tubing: For additional insulation and strain relief, slide heat shrink tubing over the joint and apply heat to shrink it tightly around the connector and cable.
– Inspect the Assembly: Ensure the connector is securely attached and there are no loose or poorly crimped parts. Verify that the center pin and shield are properly connected. - Test the Connection:
– Verify Connections: Ensure that the connector is securely attached and there are no loose parts.
– Test Signal: Use appropriate testing equipment to confirm the connection is functioning correctly and that there are no signal issues.

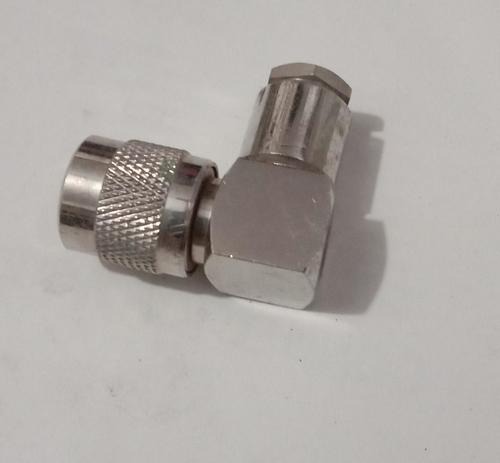

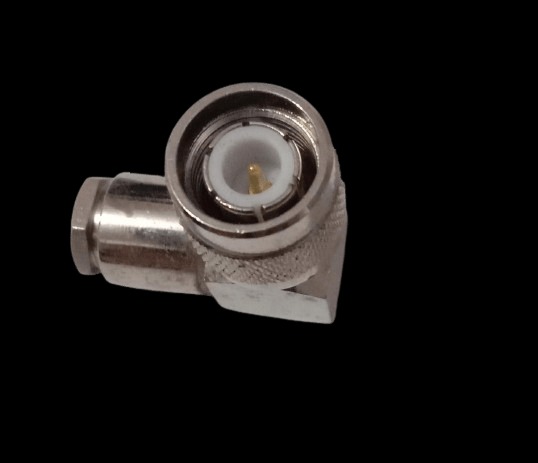

TNC M RA LMR 240 CLAMP
₹135
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The TNC Male Right Angle LMR 240 Clamp connector is designed for use with LMR 240 coaxial cables. It features a right-angle design, allowing for easy cable routing in tight spaces, and uses a clamp attachment method for a secure connection. This connector supports RF applications up to 11 GHz, making it ideal for telecommunications, wireless communication systems, and other high-frequency environments. The TNC Male Right Angle LMR 240 Clamp connector offers reliability and long-term durability.
| Weight | 0.1 kg |
|---|
