- Prepare the Cable:
– Strip the Cable: Use a coaxial cable stripper to remove approximately 1 inch (25 mm) of the outer insulation from the LMR-100 cable. Be careful not to damage the underlying braided shield.
– Expose the Shielding: Fold back the braided shield or foil shield over the outer insulation.
– Trim the Dielectric: Carefully trim the dielectric (the foam or insulating layer around the center conductor) so that about 1/4 inch (6 mm) of the center conductor is exposed. - Prepare the Connector:
– Ensure that you have the correct TNC male RP connector that fits LMR-100 cable. The connector will typically include a crimp ferrule and a crimp pin. - Insert the Crimp Pin:
– Crimp Pin: Slide the crimp pin onto the exposed center conductor. Make sure the pin makes proper contact with the conductor. In some cases, you may need to solder the pin before crimping.
– Crimp the Pin: Use your crimping tool to crimp the pin onto the center conductor. Ensure the crimp is secure and that the pin is firmly attached to the conductor. - Attach the Connector:
– Crimp Ferrule: Slide the crimp ferrule (a metal sleeve) over the folded-back shield and onto the connector. Ensure it aligns correctly with the connector body.
– Insert the Cable: Push the cable (with the crimped pin) into the TNC male RP connector until it’s fully seated.
– Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the shield and connector body. This step secures the shield to the connector and ensures a proper ground connection. - Inspect the Connection:
– Check the connection to make sure it is firm and there are no visible gaps or loose parts.
– Verify that the cable is fully seated and that there are no shorts or exposed wires. - Test the Connection:
– If possible, use a network analyzer or other testing equipment to check the integrity of the connection and ensure proper functionality. - Additional Tips:
– Choose the Right Tools: Ensure your crimping tool is specifically designed for TNC connectors and in good condition.
– Accurate Stripping: Proper stripping of the cable is critical. Avoid stripping too much or too little of the cable.
– Practice: If you’re new to crimping, practicing on some scrap cables and connectors can help you get a feel for the process.
TNC M RP LMR 100 CRIMP
₹99
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

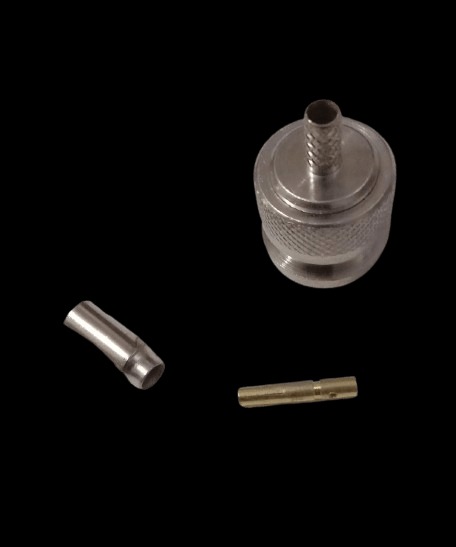

The TNC Male Reverse Polarity LMR 100 Crimp connector is designed for use with LMR 100 coaxial cables. It features a reverse polarity configuration and a crimp attachment method for a secure connection with minimal signal loss. This connector supports RF applications up to 11 GHz, making it suitable for telecommunications and other high-frequency environments where reverse polarity is required. The TNC Male Reverse Polarity LMR 100 Crimp connector offers excellent durability and performance.
Tools and Materials:
– TNC Male RP Connector (designed for LMR-100 cable)
– LMR-100 Coaxial Cable
– Crimping Tool (appropriate for TNC connectors)
– Cable Stripper (for coaxial cables)
– Cutting Tool (for trimming the cable and connector)
– Soldering Iron (if the connector requires soldering)
