- Prepare the Cable:
– Strip the Cable: Use a coaxial cable stripper to carefully remove about 1 inch (25 mm) of the outer insulation from the LMR-200 cable. Be careful not to damage the underlying braided shield.
– Expose the Shielding: Fold back the braided shield or foil shield over the outer insulation.

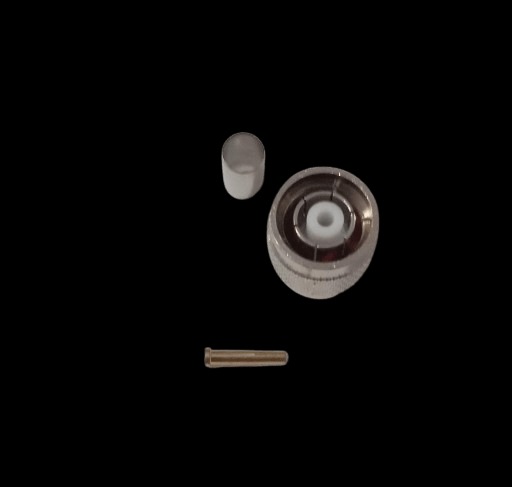

– Trim the Dielectric: Trim the dielectric (the foam or insulating layer around the center conductor) so that about 1/4 inch (6 mm) of the center conductor is exposed. - Prepare the Connector:– Ensure you have the correct TNC male RP connector for the LMR-200 cable. Typically, TNC connectors have a crimp ferrule and a crimp pin.
- Insert the Crimp Pin:
– Crimp Pin: Slide the crimp pin onto the exposed center conductor. Make sure the pin is properly aligned and making contact with the conductor. Some designs may also require soldering the center pin before crimping.
– Crimp the Pin: Use your crimping tool to crimp the pin securely onto the center conductor. The crimping tool will compress the pin around the conductor, making a solid connection. - Attach the Connector:
– Crimp Ferrule: Slide the crimp ferrule (a metal sleeve) over the folded-back shielding and onto the connector. Ensure it aligns with the connector body.
– Insert the Cable: Push the cable (with the crimped pin) into the TNC male RP connector until it’s fully seated.
– Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the shield and connector body. This will secure the shield to the connector and ensure a good ground connection. - Inspect the Connection:
– Ensure the connector is firmly attached and that there are no visible gaps or loose parts.
– Verify that the cable is fully seated and that there are no shorts or exposed wires. - Test the Connection:
– If possible, use a network analyzer or similar device to test the cable and connector assembly for proper functionality and signal integrity. - Additional Tips:
– Correct Tools: Make sure your crimping tool is designed specifically for TNC connectors and is in good condition.
– Accurate Stripping: Accurate cable stripping is crucial for a good connection. Avoid stripping too much or too little of the cable.
– Practice: If you’re new to crimping connectors, practicing on some spare cables and connectors can help improve your technique and avoid mistakes.
TNC M RP LMR 200 CRIMP
₹99
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

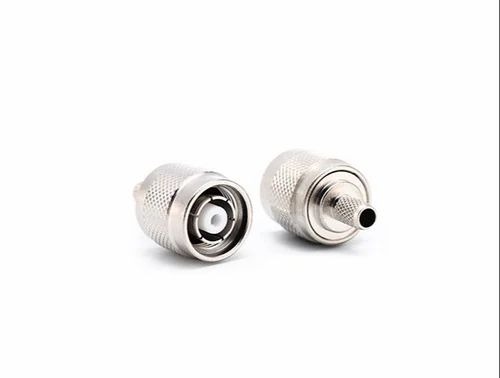

The TNC Male Reverse Polarity LMR 200 Crimp connector is designed for use with LMR 200 coaxial cables. It features a reverse polarity configuration and uses a crimp attachment method for secure and reliable connections. Supporting RF applications up to 11 GHz, this connector is ideal for telecommunications and other high-frequency environments where reverse polarity is necessary. The TNC Male Reverse Polarity LMR 200 Crimp connector provides excellent durability and performance in various installations.
| Weight | 0.1 kg |
|---|
