- Prepare the Cable:
– Strip the Cable: Use a coaxial cable stripper to remove approximately 1 to 1.5 inches (25 to 38 mm) of the outer insulation from the LMR-240 cable. Be careful not to damage the underlying braided shield.
– Expose the Shielding: Fold back the braided shield (or foil shield) over the outer insulation.
– Trim the Dielectric: Carefully trim the dielectric (the foam or insulating layer around the center conductor) so that about 1/4 inch (6 mm) of the center conductor is exposed. - Prepare the Connector:
– Ensure you have the correct TNC male RP connector for LMR-240. This typically includes a crimp ferrule and a crimp pin.

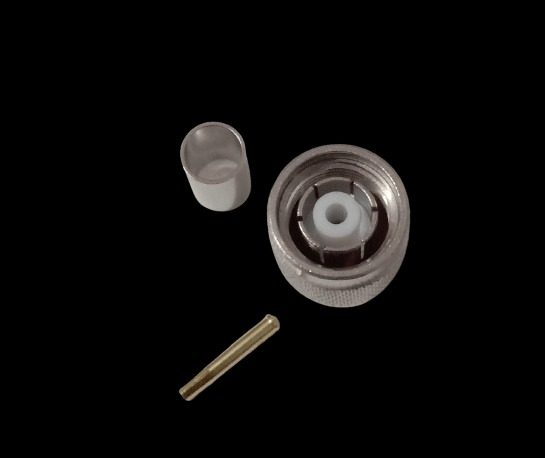

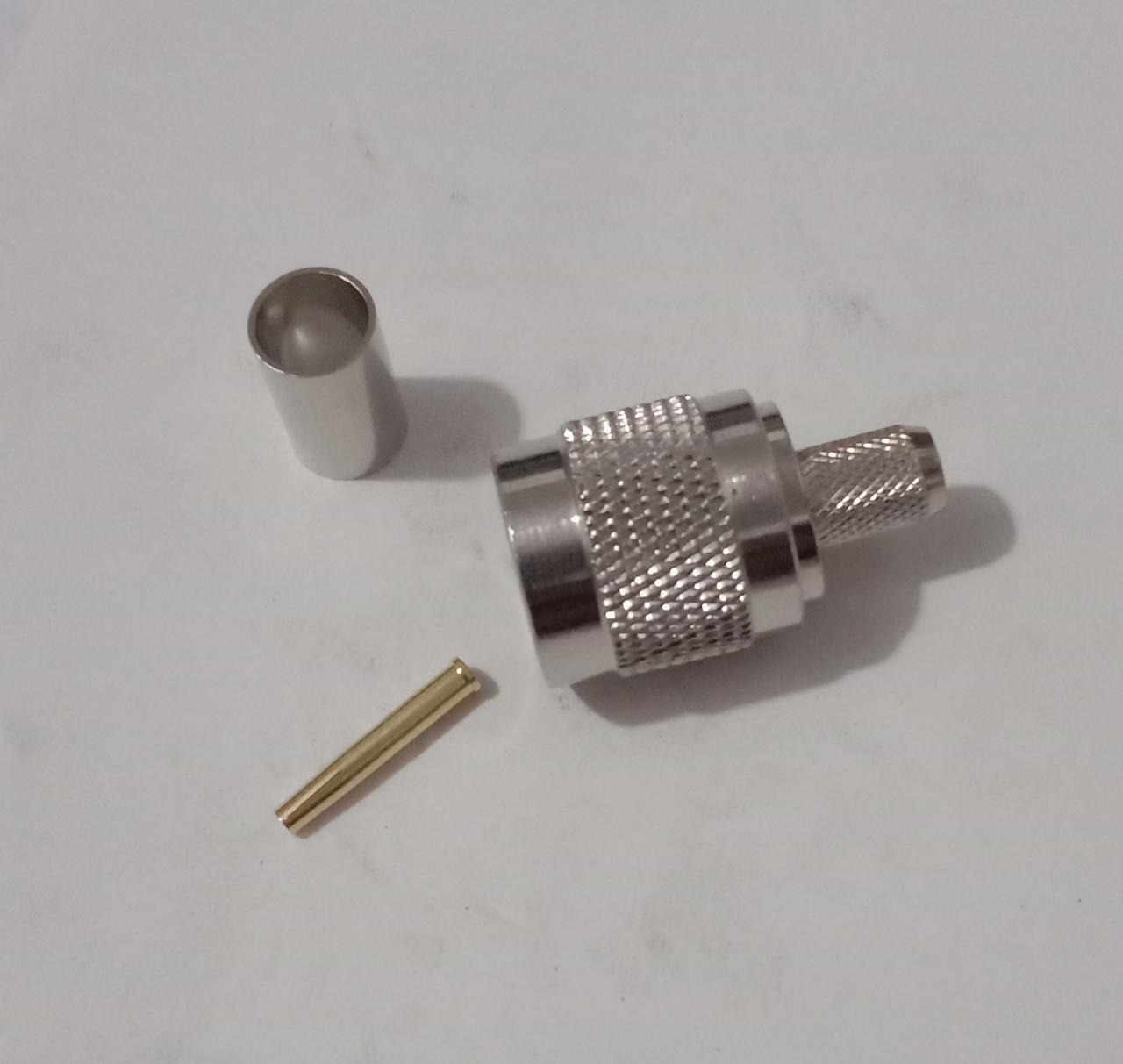

– Check Connector Components: Familiarize yourself with the connector parts: the crimp ferrule (often a sleeve), the crimp pin, and the connector body. - Insert the Crimp Pin:
– Crimp Pin: Slide the crimp pin onto the exposed center conductor. Make sure the pin is properly aligned and makes good contact with the conductor. Some designs may also require soldering the pin to the conductor before crimping.
– Crimp the Pin: Use the crimping tool to crimp the pin onto the center conductor. The crimping tool will compress the pin around the conductor to ensure a solid connection. - Attach the Connector:
– Crimp Ferrule: Slide the crimp ferrule (metal sleeve) over the folded-back shielding and onto the connector body. Ensure that it aligns correctly with the connector body.
– Insert the Cable: Push the cable (with the crimped pin) into the TNC male RP connector until it’s fully seated.
– Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the shield and connector body. This will secure the shield to the connector and ensure a proper ground connection. - Inspect the Connection:
– Examine the connector to ensure it’s securely attached and there are no visible gaps or loose parts.
– Verify that the cable is fully seated in the connector and that there are no exposed wires or shorts. - Test the Connection:
– If possible, test the cable and connector assembly with a network analyzer or similar device to ensure that it is functioning correctly and there are no issues with the connection. - Additional Tips:
– Use the Right Tools: Ensure that your crimping tool is specifically designed for TNC connectors and is in good working condition.
– Accurate Stripping: Be precise with cable stripping to avoid issues with the crimping process.
– Practice: If you are new to crimping connectors, practicing on some spare cables and connectors can help you become more proficient.
TNC M RP LMR 240 CRIMP
₹99
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The TNC Male Reverse Polarity LMR 240 Crimp connector is designed for use with LMR 240 coaxial cables. It features a reverse polarity configuration and uses a crimp attachment method for secure and reliable connections. This connector supports RF applications up to 11 GHz, making it suitable for telecommunications and other high-frequency environments where reverse polarity is required. The TNC Male Reverse Polarity LMR 240 Crimp connector offers excellent durability and long-term performance.
| Weight | 0.1 kg |
|---|
