UHF Female Right Angle LMR 200 Crimp
- Prepare the Cable:
– Strip the Outer Jacket: Use the cable stripping tool to remove about 1.5 to 2 inches of the outer jacket from the LMR 200 cable. Be cautious not to damage the underlying braided shield.
– Expose the Shielding: Pull back the braided shield to reveal the dielectric insulation. Trim any excess shielding to ensure it fits properly inside the connector.
– Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of the exposed center conductor should be around 1/4 to 1/2 inch. - Prepare the Connector:
– Slide on the Ferrule or Sleeve: If the UHF female right-angle connector has a ferrule or metal sleeve, slide it onto the cable before inserting the cable into the connector.
– Insert the Cable: Insert the prepared end of the LMR 200 cable into the UHF female right-angle connector. Ensure that the center conductor fits into the center pin of the connector and that the shield aligns with the ferrule. - Crimp the Connector:
– Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the braided shield of the cable. Make sure the crimp is tight and secure, creating a solid connection between the shield and the connector.
– Crimp the Center Pin: Use the crimping tool to crimp the center pin of the UHF female right-angle connector onto the center conductor of the cable. Ensure that the center conductor is fully inserted into the pin before crimping. - Assemble and Insulate (Optional):
– Check the Fit: Ensure that the connector is firmly attached and there are no loose parts. The center pin should be well-aligned, and the shield should be securely crimped.
– Apply Heat Shrink Tubing (Optional): For additional insulation and strain relief, slide heat shrink tubing over the joint and apply heat to shrink it tightly around the connector and cable. - Inspect the Assembly:
– Verify Connections: Check the crimped areas to ensure they are clean and well-formed. Ensure that the center conductor and shield are properly connected.
– Test the Connection: Optionally, test the assembled connector with appropriate equipment to ensure it is functioning correctly and there are no signal issues.
₹125
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

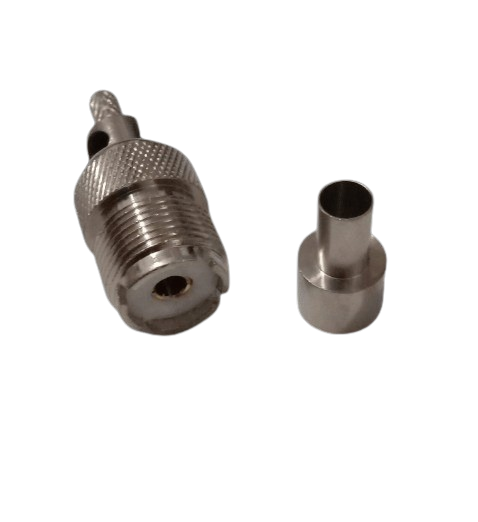

The UHF Female Right Angle LMR 200 Crimp connector is designed for applications requiring a 90-degree cable exit. This configuration allows for flexible installation in tight spaces without compromising performance. It is suitable for LMR 200 cables, offering low loss and excellent signal integrity. The crimp termination provides a secure and efficient connection, ideal for wireless communication systems, antennas, and other RF devices. Its durable construction ensures long-lasting performance, making it preferred choice in space-constrained installations. |
UHF Female Right-Angle Connector (PL-259 type for LMR 200)
LMR 200 Coaxial Cable
Crimping Tool (suitable for UHF connectors)
Cable Stripping Tool
Coaxial Cable Preparation Tool (optional, for precision)
Heat Shrink Tubing (optional, for additional insulation and strain relief
| Weight | 0.1 kg |
|---|
