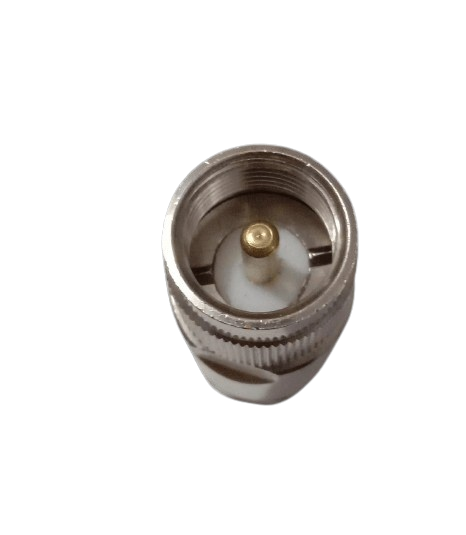

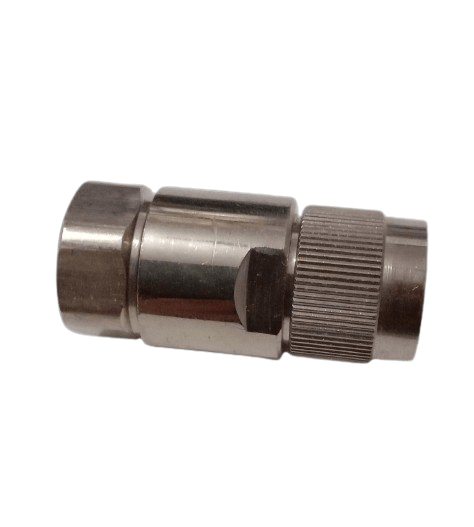

UHF Male 1/2″ LDF Clamp
- Prepare the Cable:
– Strip the Outer Jacket: Use the cable stripping tool to remove approximately 1.5 to 2 inches of the outer jacket from the 1/2″ LDF cable. Be careful not to damage the underlying shield.
– Expose the Shielding: Pull back the braided shield or foil shield from the dielectric insulation. Trim any excess shielding to ensure it fits properly inside the connector.
–Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of exposed center conductor should be around 1/4 to 1/2 inch. - Prepare the Connector:
– Slide on the Clamp: If the connector has a separate clamp or ferrule, slide it onto the cable before inserting the cable into the connector. The clamp is typically a metal sleeve that will be tightened to secure the cable. - Insert the Cable:
– Position the Cable: Insert the prepared end of the LDF cable into the UHF male connector. Ensure the center conductor fits into the connector’s center pin and the shield aligns with the clamp area. - Secure the Connection:
– Clamp the Connector: Use a wrench or pliers to tighten the clamp onto the cable. This secures the cable to the connector and ensures a solid mechanical and electrical connection. Ensure the clamp is tightened evenly to avoid any gaps.
– Check the Connection: Verify that the center conductor is properly aligned with the center pin and that the clamp has securely attached the shield. - Solder the Connection (if applicable):
– Solder for Added Security: Some connectors and installations might require additional soldering for a secure electrical connection. If the connector allows or requires soldering, heat the center pin and apply solder to ensure a good electrical connection. - Insulate and Finalize:
– Apply Heat Shrink Tubing (optional): Slide heat shrink tubing over the connection and apply heat to shrink it. This provides additional insulation and strain relief.
– Inspect the Assembly: Check that the connector is securely attached and that there are no loose parts. Ensure the center pin and shield are well-connected.
₹180
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The UHF Male 1/2″ LDF Clamp connector is designed for use with 1/2″ LDF cables, providing a secure and stable connection. The clamp termination method offers a strong grip on the cable, ensuring minimal signal loss and reliable performance. This connector is ideal for high-power RF applications, such as broadcasting and telecommunications, where durability and stability are essential. Its robust design and precise construction make it suitable for use in demanding environments, providing consistent performance and optimal signal transmission. |
UHF Male Connector with Clamp (typically for LDF 1/2″ cable)
1/2″ LDF Coaxial Cable
Cable Stripping Tool
Wrench or Pliers (for tightening the clamp)
Soldering Iron and Solder (if needed, for additional secure connection)
Heat Shrink Tubing (optional, for additional insulationoptimal signal transmission.
