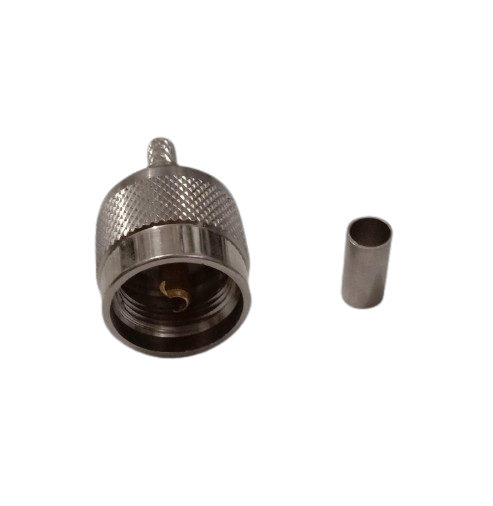

UHF Male LMR 200 Crimp

  • Prepare the Cable:
    Strip the Outer Jacket: Use the cable stripping tool to remove about 1.5 to 2 inches of the outer jacket from the LMR 200 cable. Be careful not to damage the braided shield underneath.
    Expose the Shielding: Pull back the braided shield and trim any excess to ensure it fits properly inside the connector.
    Strip the Dielectric: Strip the dielectric insulation to expose the center conductor. The length of exposed center conductor should be about 1/4 to 1/2 inch.
  • Prepare the Connector:
    Slide the Ferrule: Slide the metal ferrule (sleeve) onto the cable. This ferrule will be crimped onto the braided shield later.
    Insert the Cable into the Connector: Insert the prepared end of the LMR 200 cable into the UHF male connector. Ensure the center conductor fits into the connector’s center pin, and the shield aligns with the ferrule.
  • Crimp the Connector:
    Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the braided shield of the cable. Ensure that the ferrule is crimped securely, making a solid connection between the shield and the connector.
    Crimp the Center Pin: Crimp the center pin of the UHF male connector onto the center conductor of the cable. Ensure the conductor is properly inserted into the pin before crimping.
  • Assemble and Insulate (Optional):
    Check the Fit: Verify that the connector is firmly attached and that there are no loose parts. The center pin should be well-aligned, and the shield should be securely crimped.
    Heat Shrink Tubing: If using heat shrink tubing for additional insulation and strain relief, slide it over the joint and apply heat to shrink it.
  • Inspect the Assembly:
    Verify Connections: Check that the solder joints and crimped areas are clean and well-formed.
    Test the Connection: Optionally, test the assembled connector for continuity and signal integrity to ensure proper operation.




70

⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available

💰 Lowest Prices

The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

 The UHF Male LMR 200 Crimp connector is specifically designed for LMR 200 cables, known for their low loss and flexibility. Featuring a crimp termination, this connector ensures a secure and efficient connection for various RF applications. Its sturdy construction provides durability and reliability, making it suitable for wireless communication systems, antennas, and other RF devices. The connector’s design optimizes signal transmission and minimizes interference, ensuring high-quality performance in demanding environments. |
