UHF Male LMR 400 Crimp
- Prepare the Cable:
– Strip the Outer Jacket: Use a cable stripping tool to remove the outer jacket of the LMR 400 cable, exposing the shielding. Typically, you’ll need to strip about 1.5 to 2 inches of the outer jacket.
– Remove the Shielding: After stripping the outer jacket, pull back the braided shielding carefully to expose the dielectric insulation underneath.
– Expose the Dielectric and Center Conductor: Strip the dielectric insulation to expose the center conductor. Be careful not to nick or damage the center conductor. - Prepare the Connector:
– Slide the Ferrule: On the UHF male connector, there should be a metal ferrule (sleeve) that needs to be crimped onto the braided shield of the cable. Slide this ferrule onto the cable before connecting the rest of the connector parts. - Attach the Connector:
– Insert the Cable into the Connector: Carefully insert the stripped end of the LMR 400 cable into the UHF connector. Ensure that the center conductor goes through the pin in the connector and that the shield aligns properly with the ferrule. - Crimp the Connector:
– Crimp the Ferrule: Use the crimping tool to crimp the ferrule onto the braided shield of the cable. This secures the shield to the connector and ensures good electrical contact.
– Crimp the Center Pin: Next, use the crimping tool to crimp the center pin onto the center conductor. Make sure the center conductor is properly inserted into the pin and that the crimping is done securely. - Check the Assembly:
– Inspect the Connection: Verify that the connector is firmly attached and that there are no loose parts. Ensure the center pin is correctly aligned and the shield is properly crimped.
– Test the Connection: Optionally, you can test the connection for continuity and signal integrity to ensure everything is working correctly.
₹75
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

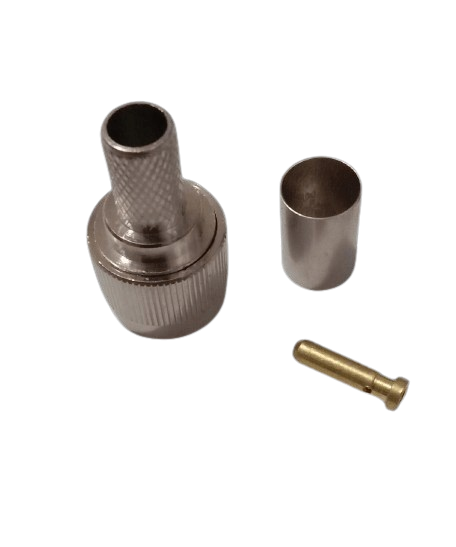

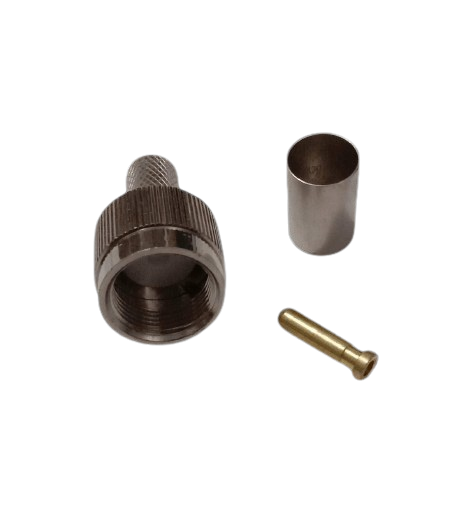

The UHF Male LMR 400 Crimp connector is engineered for LMR 400 cables, offering a reliable and secure connection. The crimp termination ensures minimal signal loss, making it suitable for high-power RF applications. This connector is widely used in broadcasting, telecommunications, and other RF systems requiring superior performance. Its durable construction and precise engineering provide long-lasting reliability, making it ideal for installations where signal integrity is critical. The connector supports efficient cable attachment and optimal signal transmission. |
UHF Male Connector (PL-259)
LMR 400 Coaxial Cable
Crimping Tool (suitable for UHF connectors)
Cable Stripping Tool (or a knife, if careful)
Coaxial Cable Preparation Tool (optional, for precision)efficient cable attachment and optimal signal transmission
