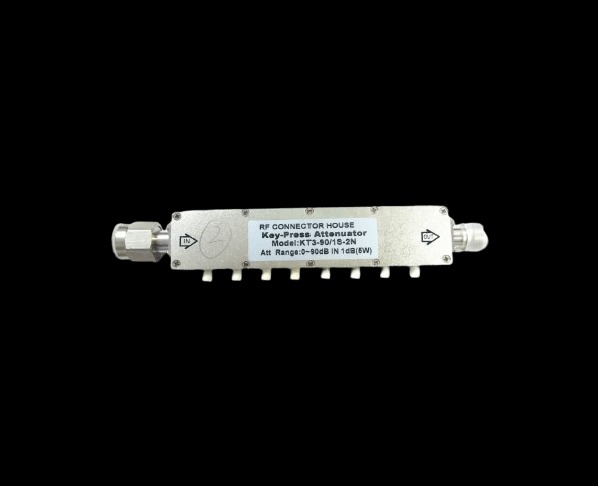

VARR ATT 0-90DB 5W N M F 1DB STEP 2.5GHZ

Variable Attenuation Range: Adjustable from 0 to 90 decibels (dB) in 1 dB steps, allowing for fine control of signal attenuation.
Power Handling: Rated to handle up to 5 watts of input power, suitable for moderate power RF applications.
Frequency Range: Effective up to 2.5 gigahertz (GHz), covering a broad range of RF frequencies.
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Design: Engineered for precise attenuation control with minimal signal loss and reliable performance.
Specifications:
Attenuation Range: 0 to 90 dB (decibels), adjustable in 1 dB steps
Maximum Power Handling: 5 watts (W)
Frequency Range: Up to 2.5 gigahertz (GHz)
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Impedance: Typically 50 ohms (Ω), ensuring proper impedance matching and minimizing signal reflections.
Return Loss: Typically better than 20 dB, ensuring minimal signal reflection and effective attenuation.
Temperature Range: Generally operates within a standard temperature range of -20°C to +75°C, though specific ranges may vary by manufacturer.
Construction: Made from high-quality materials to ensure durability and reliable performance in demanding RF applications.
Applications:
RF Testing: Ideal for laboratory and field testing environments where adjustable attenuation is needed to manage signal levels and calibrate equipment.
Signal Conditioning: Useful for applications requiring precise and variable attenuation to control signal strength and quality.
Communication Systems: Helps in fine-tuning signal levels in RF communication systems operating up to 2.5 GHz, ensuring optimal system performance.
Microwave Systems: Suitable for microwave systems where variable attenuation is necessary for maintaining signal integrity and managing signal levels.
The VARR ATT 0-90DB 5W N M/F 1DB STEP 2.5GHz attenuator is a versatile and high-precision component designed for managing RF signal levels with variable attenuation, providing fine control in a wide range of RF and microwave applications.
